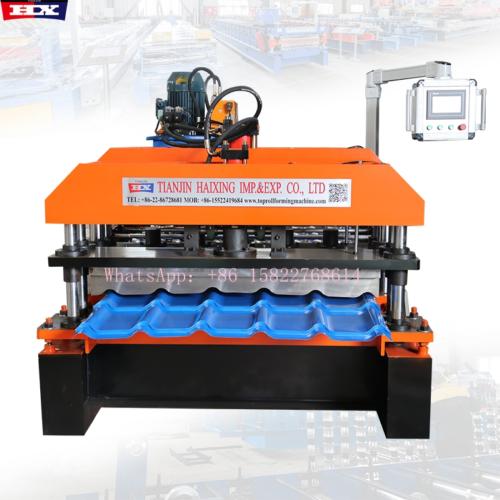

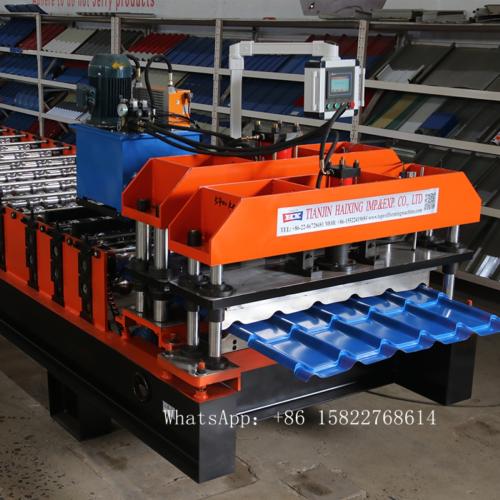

1075 glazed sheet roll forming machine
1075 glazed sheet roll forming machine 1075 glazed sheet roll forming machine 1075 glazed sheet roll forming machine 1075 glazed sheet roll forming machine 1075 glazed sheet roll forming machine

1075 glazed sheet roll forming machine

Product Attributes :

Model:HX-905-1075 tile sheet

Delivery time: 20-30 workdays

Payment: 30% deposit upon order confirmation, 70% balance before shipment.

Warranty Period:2 years

Working voltage: 380v 50hz 3phase(as your need)

WhatsApp: +86 15822768614

E-mail: alan@hx-machinery.com

Product Description

1075 glazed sheet roll forming machine

The 1075 glazed sheet roll forming machine is specially designed for producing glazed metal roofing sheets with elegant profiles and precise dimensions. Featuring a heavy-duty frame, hardened rollers, and an advanced PLC control system, it ensures smooth operation, high forming accuracy, and long-lasting performance. Ideal for residential and commercial roofing applications.

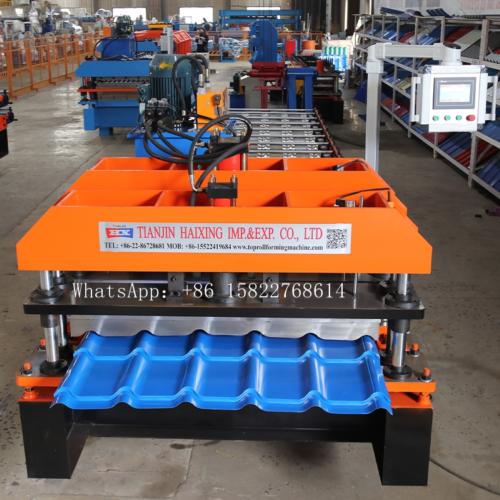

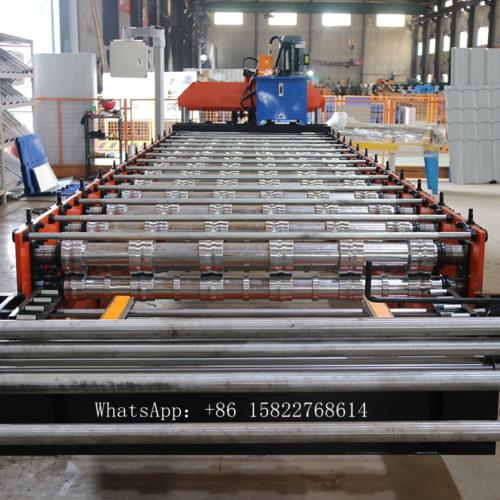

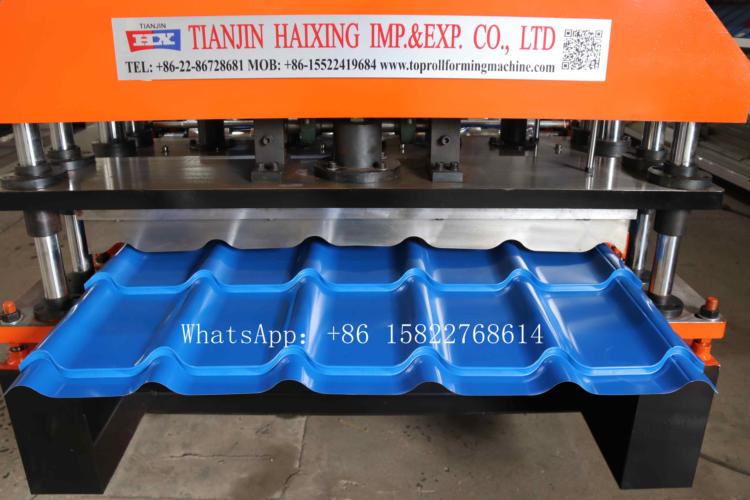

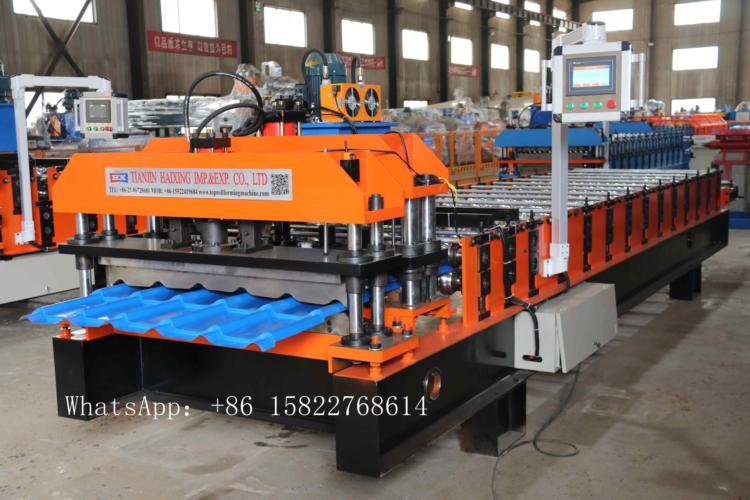

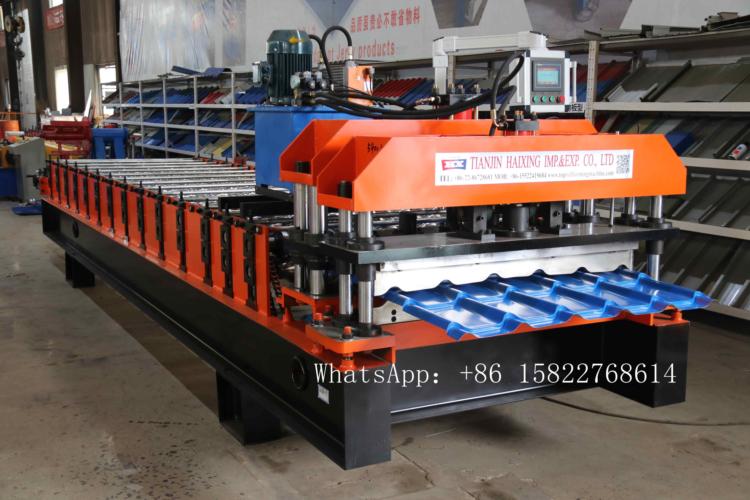

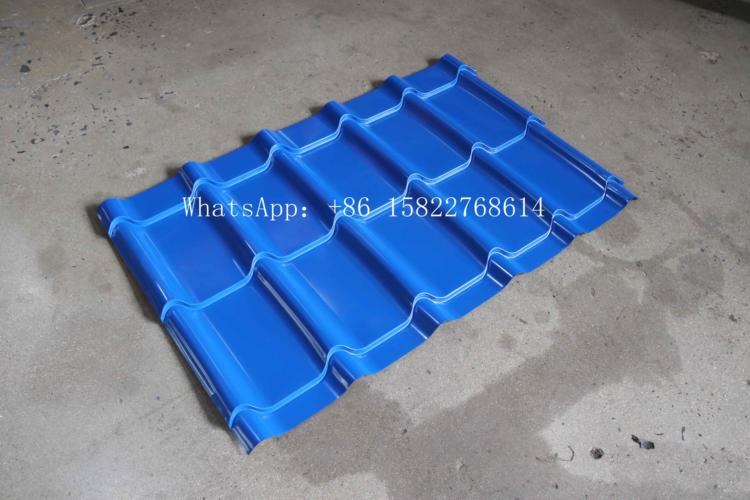

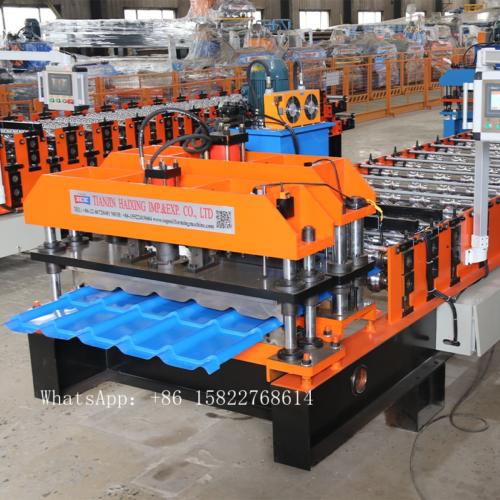

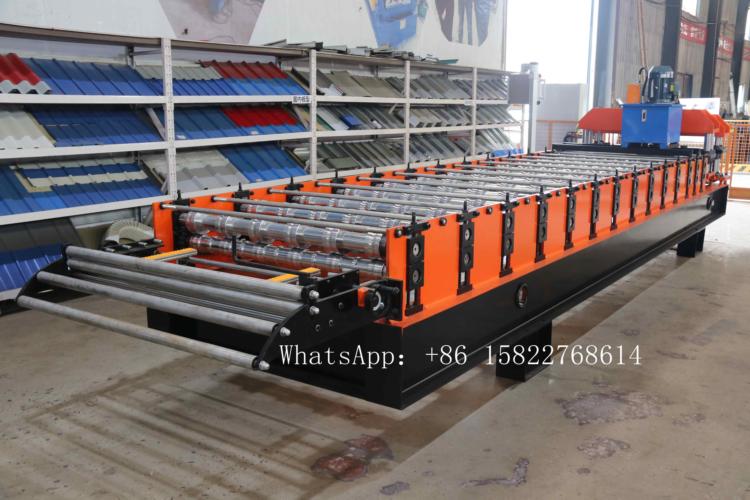

1075 glazed sheet roll forming machine photos

1075 glazed sheet roll forming machine details

Number of rows 14 Rows
Speed 3m/min
Cutting knife material Cr12Mov
Roller diameter Φ70mm
Dimensiones About 7 * 1.5* 1.7 m
Weight About 5.5 tons
Main structure of the machine 350H beams/450H beams (according to your needs)
Transmission mode Chain drive
Chain size 1.2 inches
Side panel 16 mm
Voltage 380 V 50 Hz three-phase or according to your needs
Control system PLC control
Processing precision Within 1.0 mm
Driving mode Motor driver
Power 5.5kw+4kw
PLC language Chinese + English + According to your local language
Rolling stock Forged #45 steel with chrome plate
Length tolerance ±2 mm
Thickness 0.3-0.8 mm
Coil width 1200mm

Customization & Long-Term Support

1.We customize function, size, and appearance to match your specific production needs.

2.With 28+ years in roll forming machine manufacturing, we offer trusted quality.

3.Our expert R&D team continuously innovates to enhance machine performance.

4.Machines exported worldwide, widely recognized for reliability and satisfaction.

5.We monitor machine performance and offer maintenance guidance.

Pre-Sales & Customization

1.We offer customized machine solutions and welcome on-site visits, with invitation letters if needed.

2.We offer various terms like FOB, CIF, CFR, EXW, DDP, and express courier services.

3.We accept multiple currencies and methods including T/T, L/C, PayPal, Credit Card, and more.

4.Only one trained operator is needed thanks to our intelligent PLC control system.

Spare Parts & Optimization

1.Original parts with fast delivery and competitive prices ensure reliable operation.

2.We help optimize your production flow based on your layout and needs.

3.We analyze power usage and suggest ways to reduce consumption and costs.

4.Engineers can be dispatched for onsite service as local travel policies allow.
