Model：HX-923-tile 828
Delivery time: 30-35 workdays
Payment: 30% deposit upon order confirmation, 70% balance before shipment.
Warranty Period：2 years
Working voltage: 380v 50hz 3phase（as your need）
WhatsApp: +86 15822768614
E-mail: alan@hx-machinery.com
828 roof tile forming machine
The 828 roof tile forming machine is specially designed to produce metal roof tiles with an 828 mm effective width, featuring precise profiles and a smooth, attractive finish. It’s equipped with a reinforced steel frame, hardened rollers, and a PLC-controlled system to ensure stable operation, high forming accuracy, and long-lasting performance. Perfect for manufacturers of residential and commercial metal roofing.

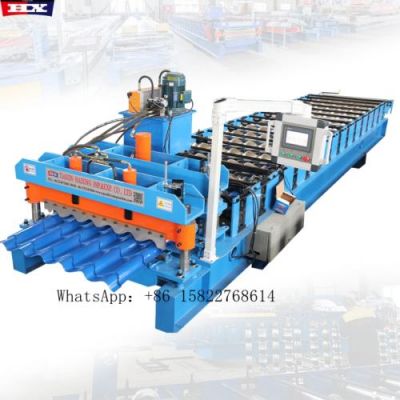

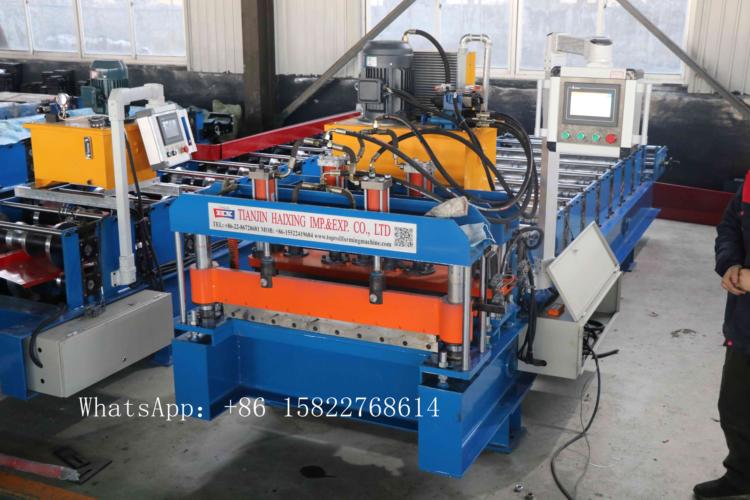

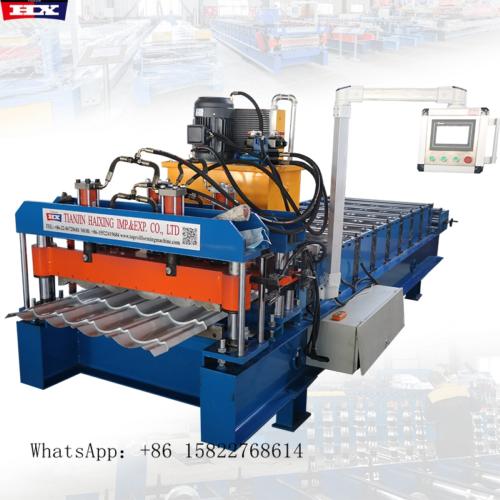

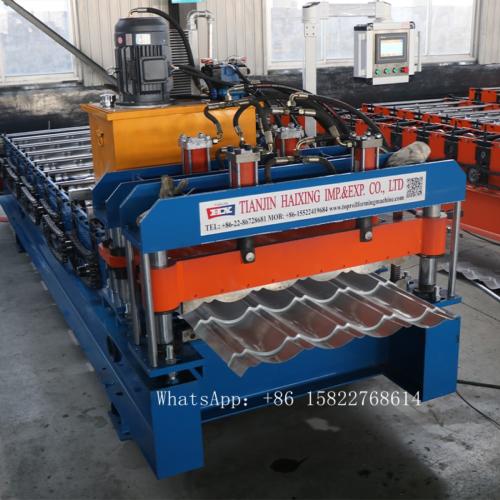

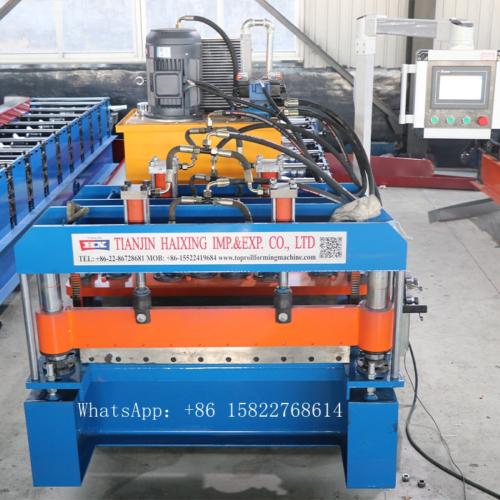

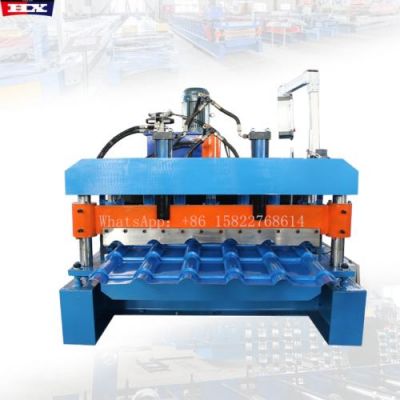

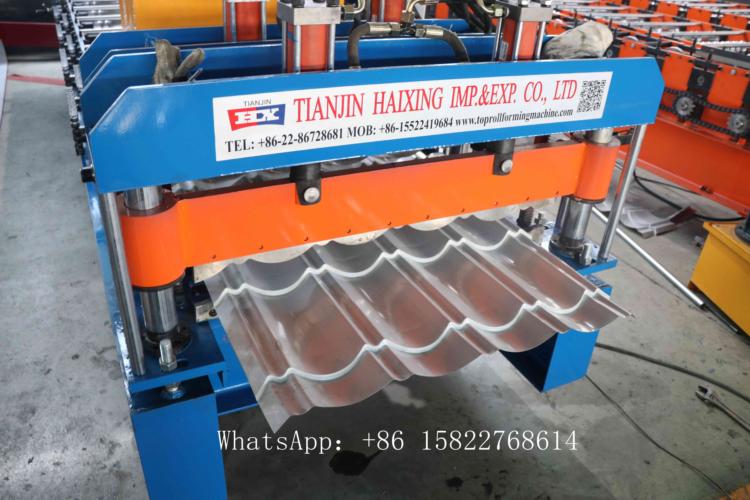

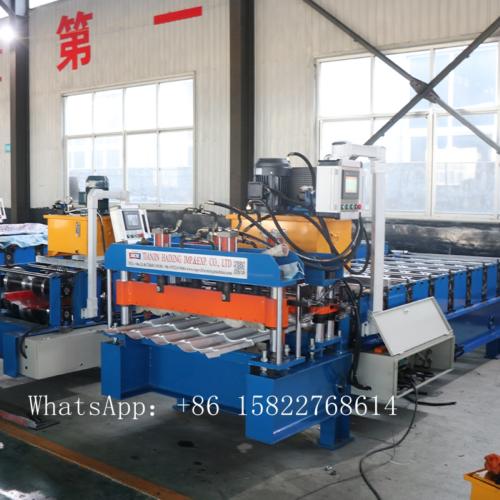

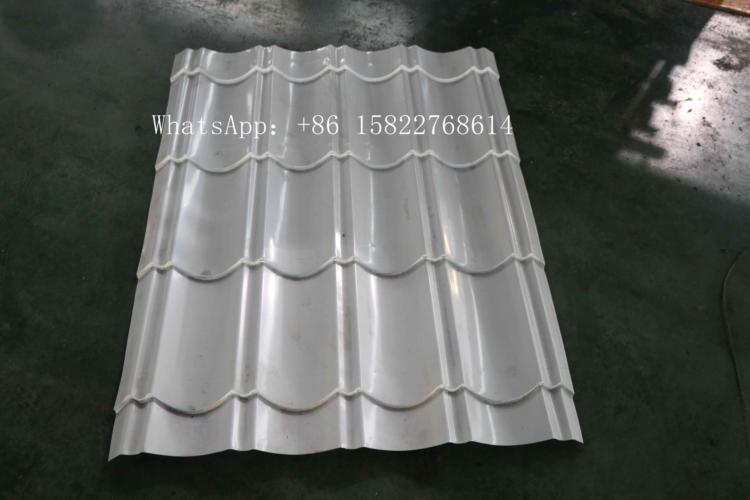

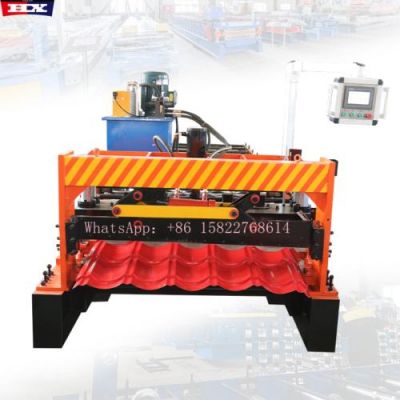

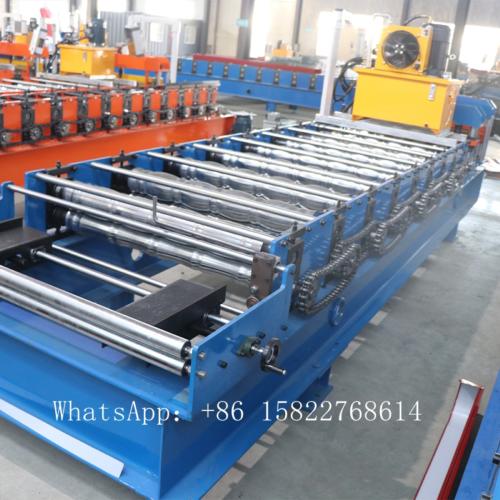

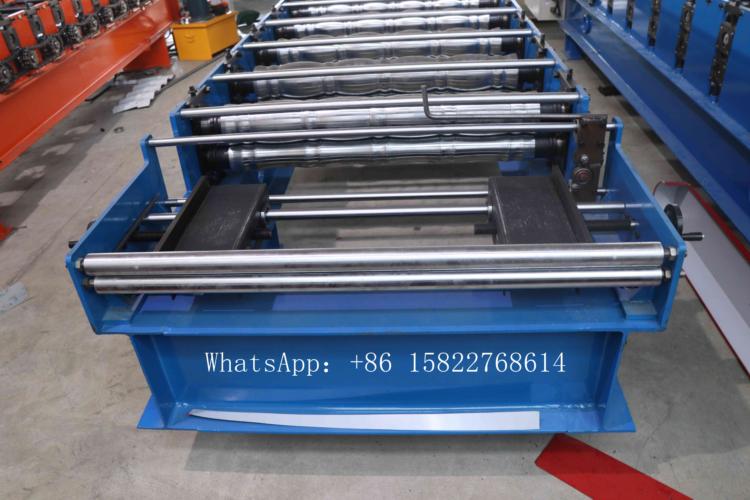

828 roof tile forming machine photos

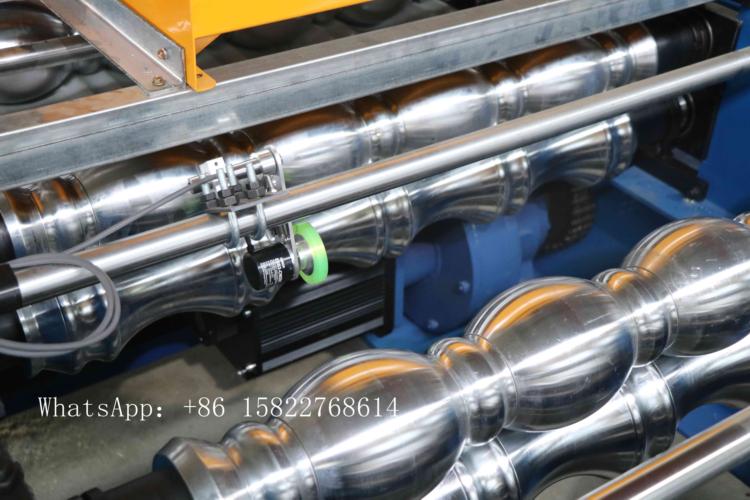

828 roof tile forming machine details
| Number of rows | 9 Rows |
| Speed | 3m/min |
| Cutting knife material | Cr12Mov |
| Roller diameter | Φ70mm |
| Dimensiones | About 5* 1.45 * 1.65 m |
| Weight | About 4 tons |
| Main structure of the machine | 350H beams/450H beams (according to your needs) |
| Transmission mode | Chain drive |
| Chain size | 1.2 inches |
| Side panel | 16 mm |
| Voltage | 380 V 50 Hz three-phase or according to your needs |
| Control system | PLC control |
| Processing precision | Within 1.0 mm |
| Driving mode | Motor driver |
| Power | 5.5kw+4kw |
| PLC language | Chinese + English + According to your local language |
| Rolling stock | Forged #45 steel with chrome plate |
| Length tolerance | ±2 mm |
| Thickness | 0.3-0.8 mm |
| Coil width | 1000mm |
Operation & Service Highlights
1.Easy to use—even first-time operators can learn quickly.
2.PLC-based automation makes operation smarter and more convenient.
3.Optimized structure keeps noise levels low for a better work environment.
4.Includes installation, commissioning, training, and full technical support.
5.24/7 service team resolves issues promptly to avoid delays.
Pre-Sales & Customization
1.We offer customized machine solutions and welcome on-site visits, with invitation letters if needed.
2.We offer various terms like FOB, CIF, CFR, EXW, DDP, and express courier services.
3.We accept multiple currencies and methods including T/T, L/C, PayPal, Credit Card, and more.
4.Only one trained operator is needed thanks to our intelligent PLC control system.
Long-Term Maintenance & Monitoring
1.We regularly check in to monitor performance and offer free maintenance advice.
2.We offer lifetime support even after the warranty ends to keep your machine running smoothly.
3.Each client has a dedicated service file for customized maintenance and upgrade advice.
4.We offer remote or onsite assessments to help improve operational efficiency.
