1035 metal roof tile making machine

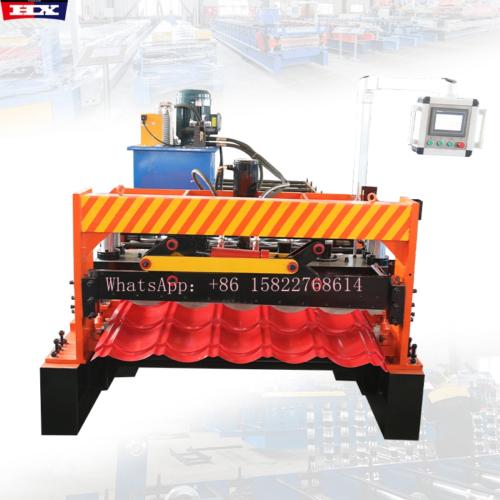

1035 metal roof tile making machine 1035 metal roof tile making machine 1035 metal roof tile making machine 1035 metal roof tile making machine 1035 metal roof tile making machine

1035 metal roof tile making machine

Product Attributes :

Model:HX-908-1035 tile sheet

Delivery time: 20-30 workdays

Payment: 30% deposit upon order confirmation, 70% balance before shipment.

Warranty Period:2 years

Working voltage: 380v 50hz 3phase(as your need)

WhatsApp: +86 15822768614

E-mail: alan@hx-machinery.com

Product Description

1035 metal roof tile making machine

The 1035 metal roof tile making machine is engineered for high-precision production of durable and aesthetically pleasing metal roof tiles. With a sturdy frame, hardened rollers, and automated control system, it ensures smooth operation, consistent quality, and long service life. Ideal for residential and commercial roofing applications.

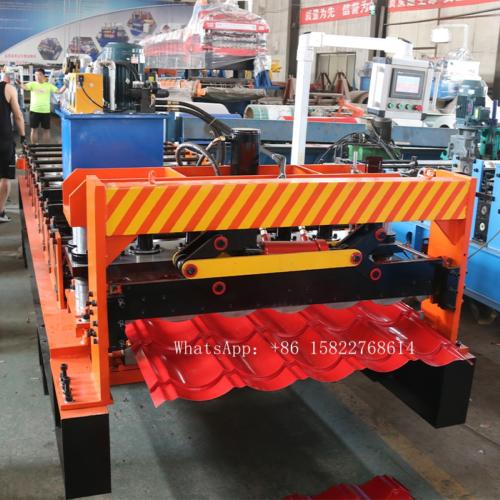

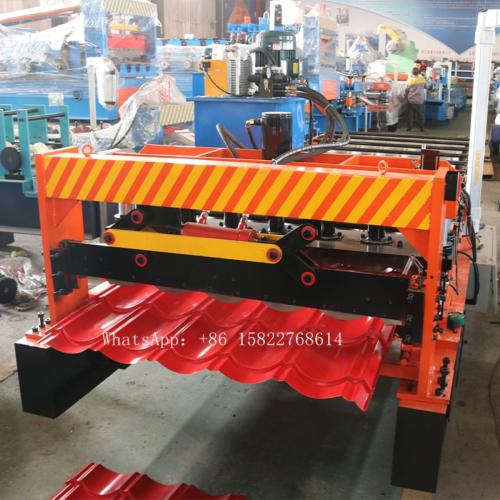

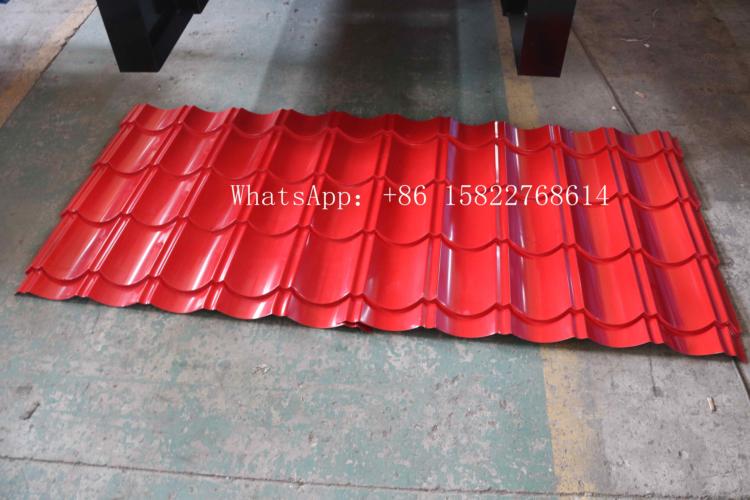

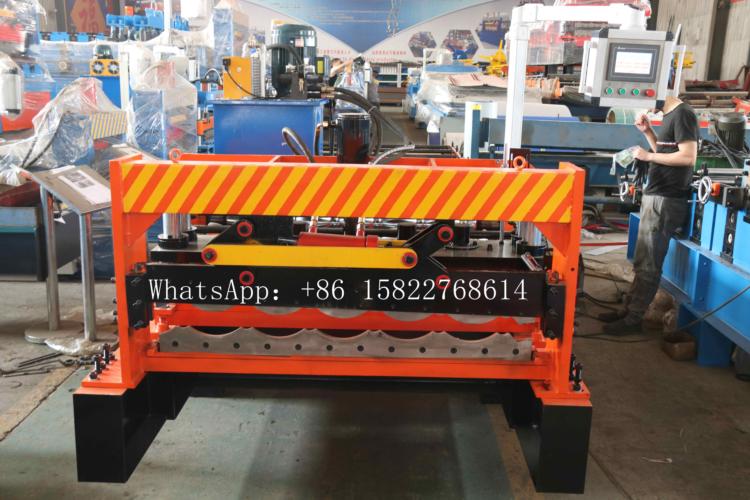

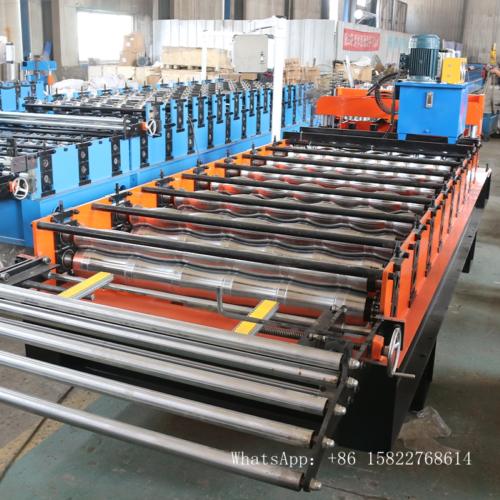

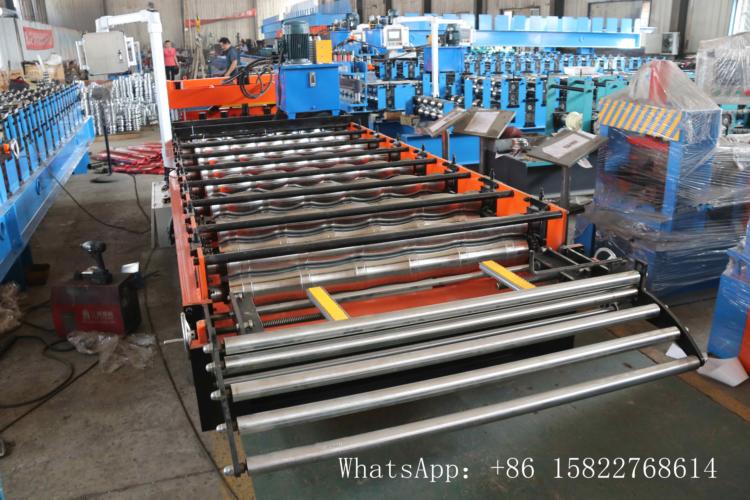

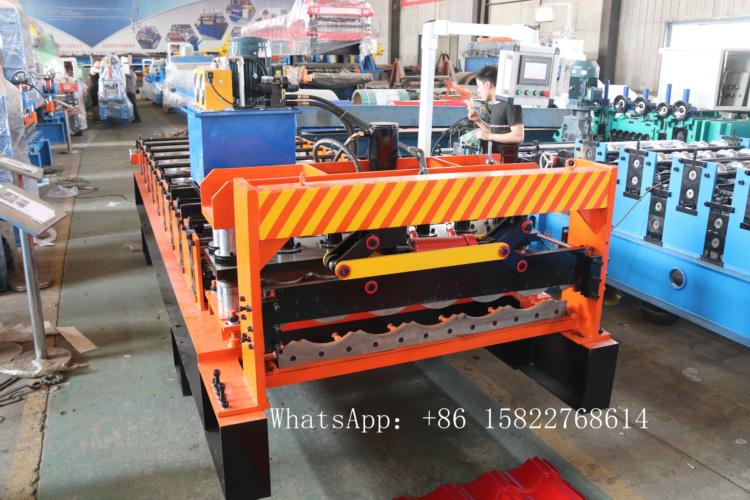

1035 metal roof tile making machine photos

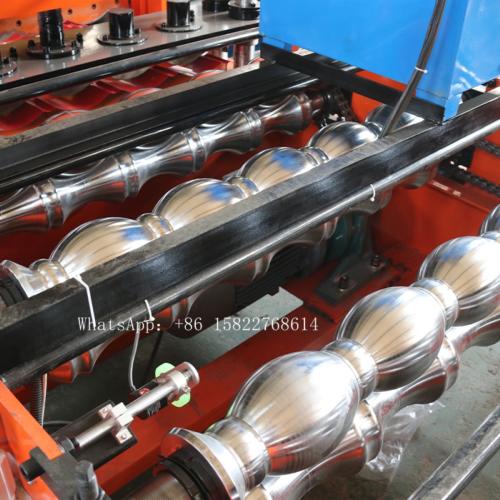

1035 metal roof tile making machine details

Number of rows 9 Rows
Speed 3m/min
Cutting knife material Cr12Mov

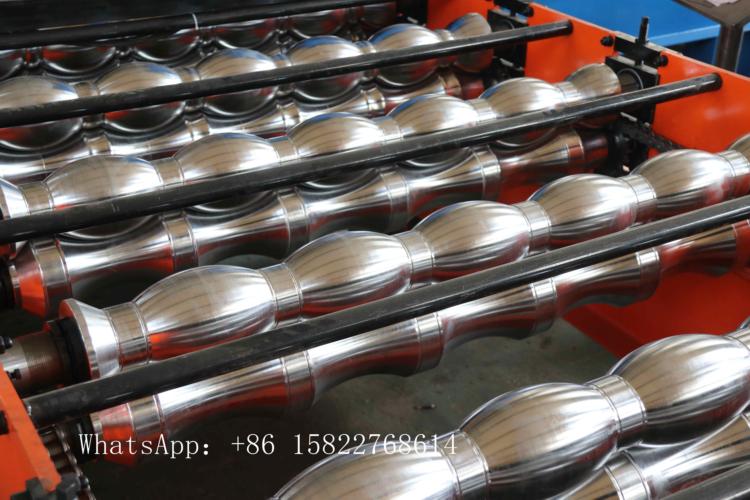

Roller diameter Φ70mm
Dimensiones About 4.2 * 1.5* 1.7 m
Weight About 4 tons
Main structure of the machine 350H beams/450H beams (according to your needs)
Transmission mode Chain drive
Chain size 1.2 inches
Side panel 16 mm
Voltage 380 V 50 Hz three-phase or according to your needs
Control system PLC control
Processing precision Within 1.0 mm
Driving mode Motor driver
Power 5.5kw+4kw
PLC language Chinese + English + According to your local language
Rolling stock Forged #45 steel with chrome plate
Length tolerance ±2 mm
Thickness 0.3-0.8 mm
Coil width 1200mm

Customization & Long-Term Support

1.We customize function, size, and appearance to match your specific production needs.

2.With 28+ years in roll forming machine manufacturing, we offer trusted quality.

3.Our expert R&D team continuously innovates to enhance machine performance.

4.Machines exported worldwide, widely recognized for reliability and satisfaction.

5.We monitor machine performance and offer maintenance guidance.

Pre-Sales & Customization

1.We offer customized machine solutions and welcome on-site visits, with invitation letters if needed.

2.We offer various terms like FOB, CIF, CFR, EXW, DDP, and express courier services.

3.We accept multiple currencies and methods including T/T, L/C, PayPal, Credit Card, and more.

4.Only one trained operator is needed thanks to our intelligent PLC control system.

Spare Parts & Optimization

1.Original parts with fast delivery and competitive prices ensure reliable operation.

2.We help optimize your production flow based on your layout and needs.

3.We analyze power usage and suggest ways to reduce consumption and costs.

4.Engineers can be dispatched for onsite service as local travel policies allow.
