Model：HX-915-PV4 & corrugated sheet
Delivery time: 30-35 workdays
Payment: 30% deposit upon order confirmation, 70% balance before shipment.
Warranty Period：2 years
Working voltage: 380v 50hz 3phase（as your need）
WhatsApp: +86 15822768614
E-mail: alan@hx-machinery.com
PV4 & corrugated double layer steel roofing machine
The PV4 & Corrugated Double Layer Steel Roofing Machine is built to produce two popular roofing profiles—PV4 and corrugated—in one compact and efficient system. With precision-engineered rollers, a reinforced frame, and an advanced PLC control panel, it ensures fast changeover, accurate forming, and long-term reliability. Perfect for manufacturers seeking to optimize space and boost productivity in metal sheet production.

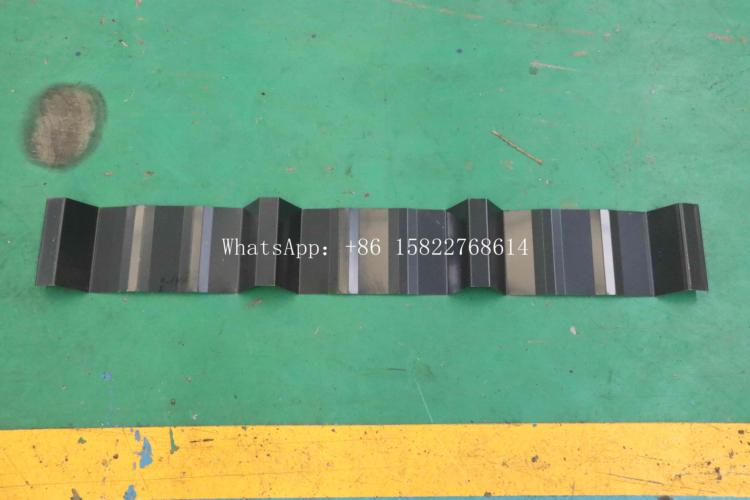

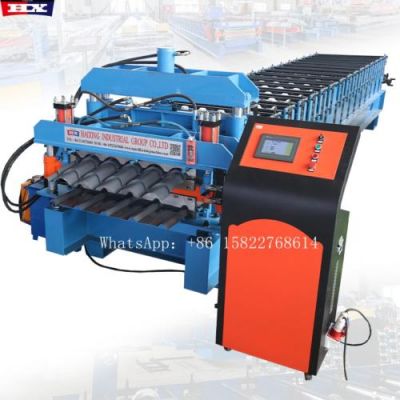

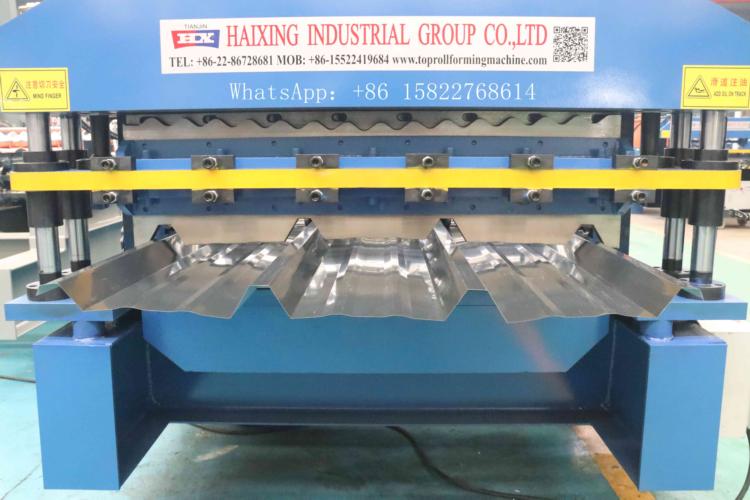

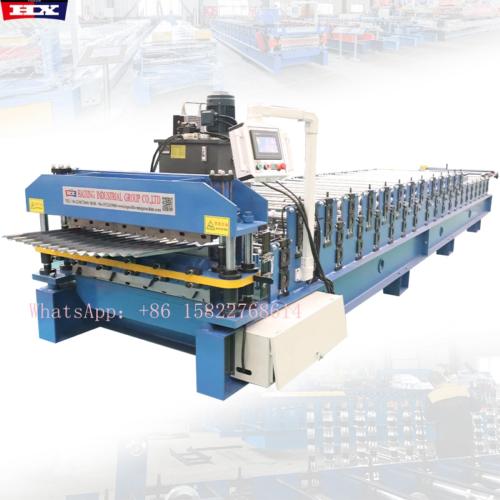

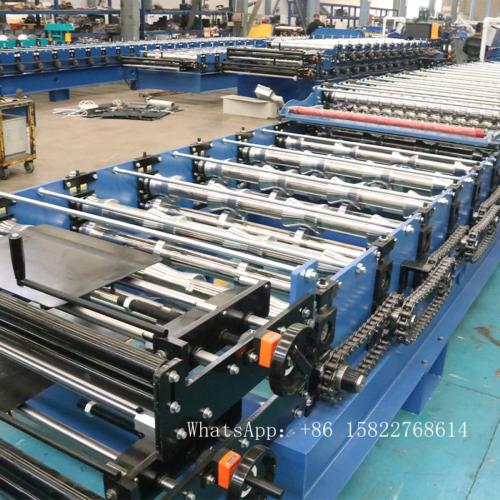

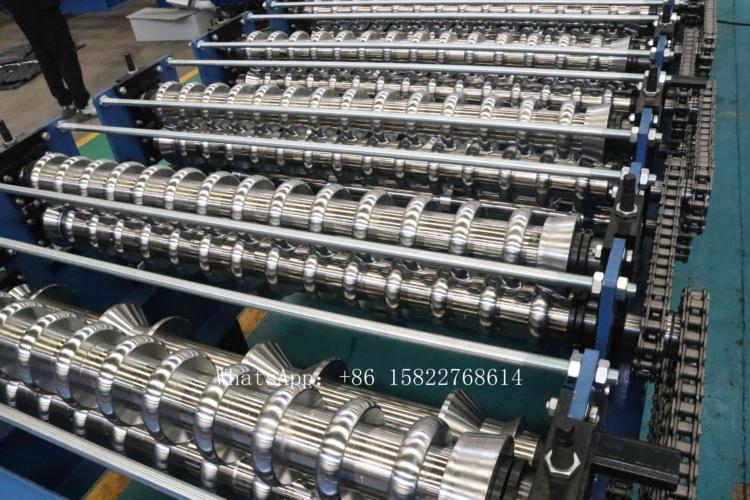

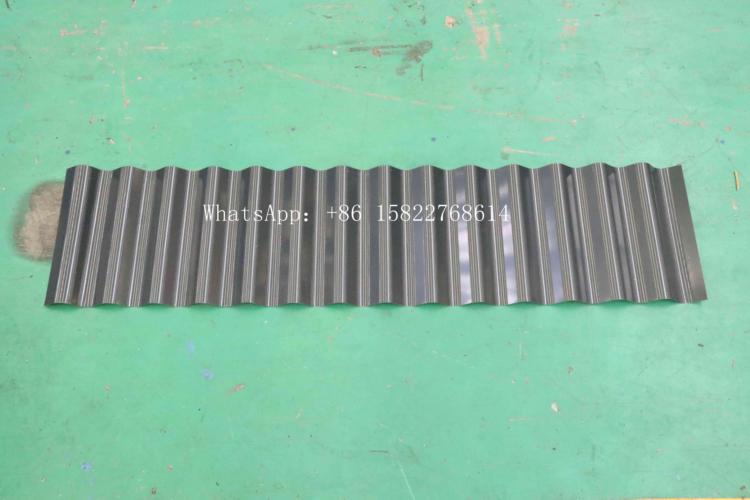

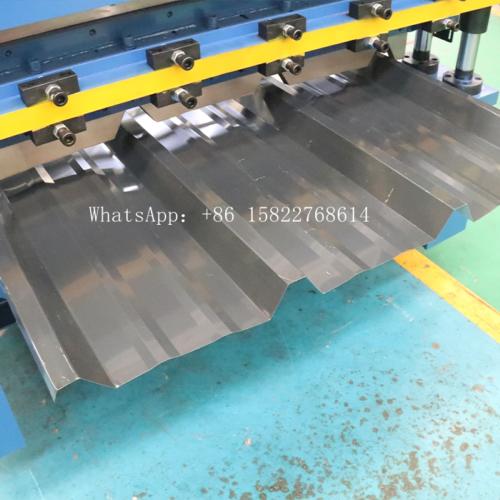

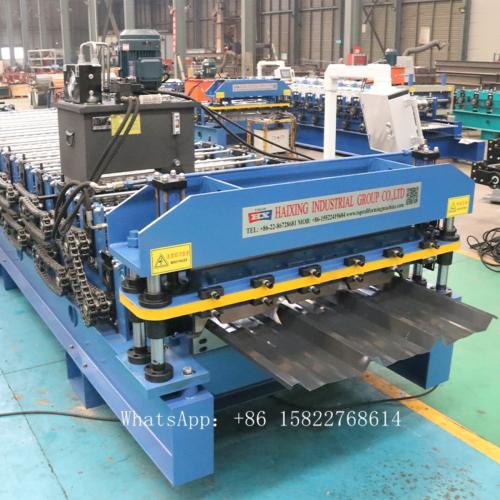

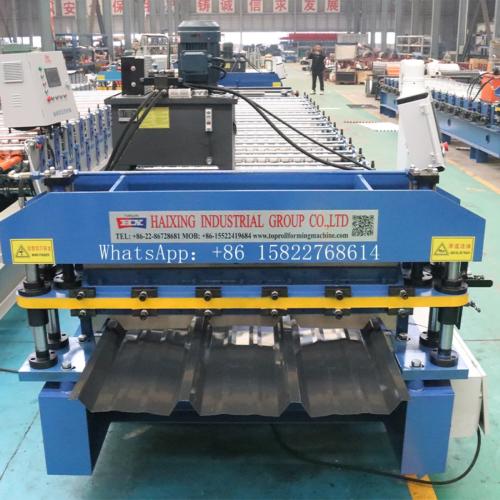

PV4 & corrugated double layer steel roofing machine photos
PV4 & corrugated double layer steel roofing machine details
| Number of rows | 13+18 Rows |
| Speed | 15m/min |
| Cutting knife material | Cr12Mov |
| Roller diameter | Φ70mm |
| Dimensiones | About 8.5 * 1.55* 1.95 m |
| Weight | About 8 tons |
| Main structure of the machine | 350H beams/450H beams (according to your needs) |
| Transmission mode | Chain drive |
| Chain size | 1.2 inches |
| Side panel | 16 mm |
| Voltage | 380 V 50 Hz three-phase or according to your needs |
| Control system | PLC control |
| Processing precision | Within 1.0 mm |
| Driving mode | Motor driver |
| Power | 5.5kw+4kw |
| PLC language | Chinese + English + According to your local language |
| Rolling stock | Forged #45 steel with chrome plate |
| Length tolerance | ±2 mm |
| Thickness | 0.3-0.8 mm |
| Coil width | 1200/1220mm |
Customization & Long-Term Support
1.We customize function, size, and appearance to match your specific production needs.
2.With 28+ years in roll forming machine manufacturing, we offer trusted quality.
3.Our expert R&D team continuously innovates to enhance machine performance.
4.Machines exported worldwide, widely recognized for reliability and satisfaction.
5.We monitor machine performance and offer maintenance guidance.
Company & Service Overview
1.We are a professional roll forming machine manufacturer from Tianjin, China, founded in 2013, exporting worldwide.
2.We welcome OEM. Our engineers develop equipment based on your drawings and requirements with top-tier components.
3.We are a direct manufacturer with 28 years of experience in roll forming machinery.
Technical Support & Warranty
1.We offer onsite or remote training to ensure your operators can safely and efficiently run the machine from day one.
2.Our team is available 24/7 via phone, WhatsApp, or video to resolve issues promptly.
3.We guide you remotely to locate and fix problems—minimizing downtime and cost.
4.Full 2-year warranty with free replacement of defective parts (excluding man-made damage).
