Tile & trapezoidal double layer roof making machine
Tile & trapezoidal double layer roof making machine Tile & trapezoidal double layer roof making machine Tile & trapezoidal double layer roof making machine Tile & trapezoidal double layer roof making machine Tile & trapezoidal double layer roof making machine

Tile & trapezoidal double layer roof making machine

Product Attributes :

Model:HX-912-tile & trapezoidal sheet

Delivery time: 30-35 workdays

Payment: 30% deposit upon order confirmation, 70% balance before shipment.

Warranty Period:2 years

Working voltage: 380v 50hz 3phase(as your need)

WhatsApp: +86 15822768614

E-mail: alan@hx-machinery.com

Product Description

Tile & trapezoidal double layer roof making machine

The Tile & Trapezoidal Double Layer Roof Making Machine is a space-saving solution designed to produce two popular roofing profiles—glazed tile and trapezoidal—on a single machine. With a reinforced steel frame, precision-formed rollers, and a fully automated PLC control system, it ensures high accuracy, quick profile switching, and continuous, stable performance. Ideal for manufacturers seeking flexibility and high efficiency in metal roof production.

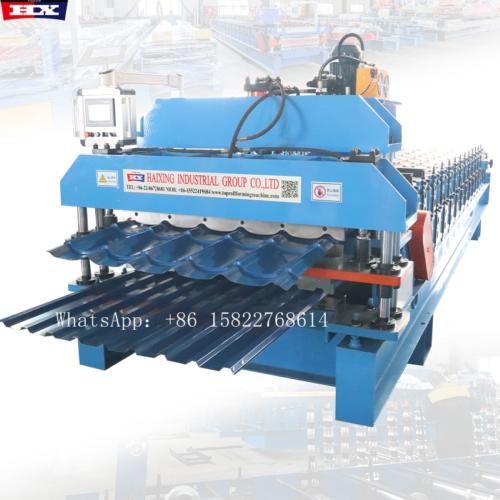

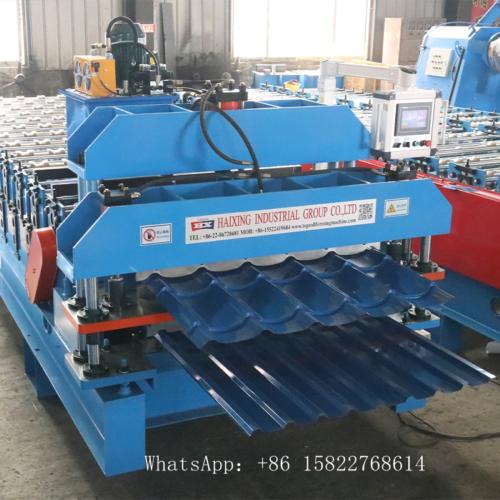

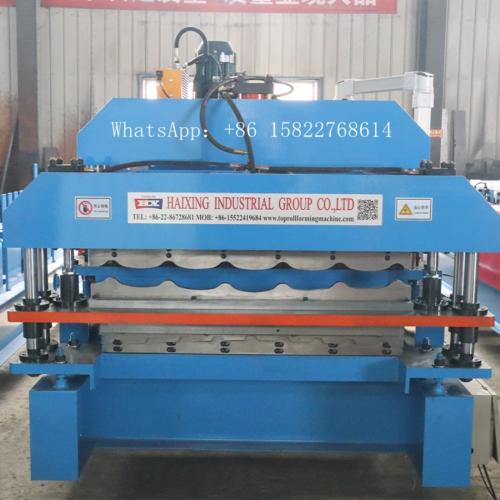

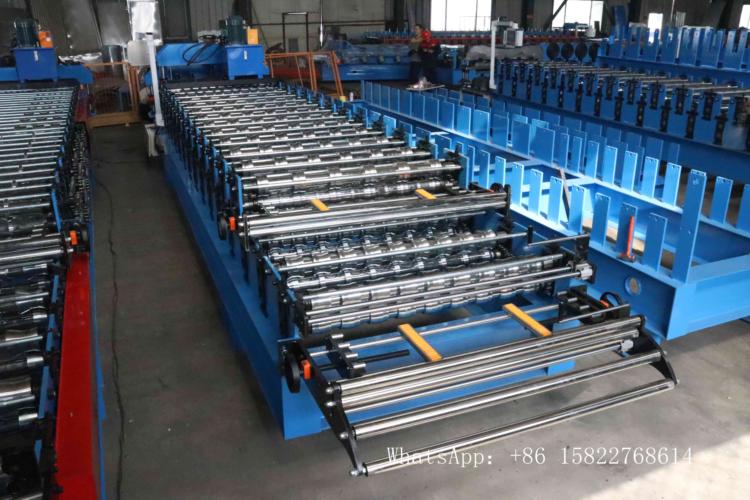

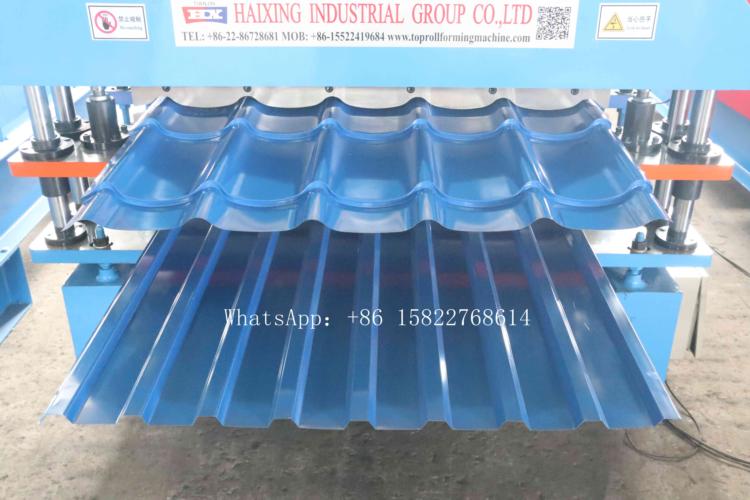

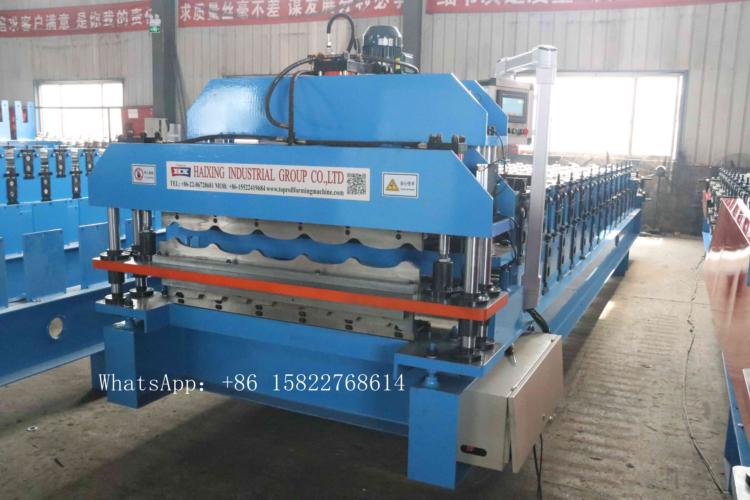

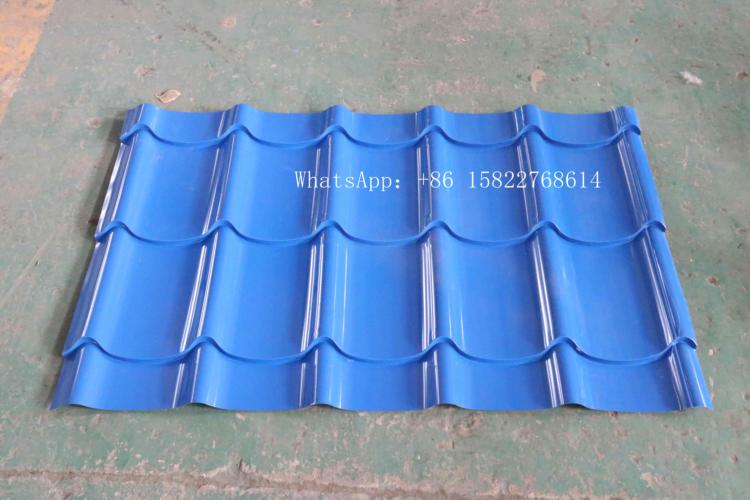

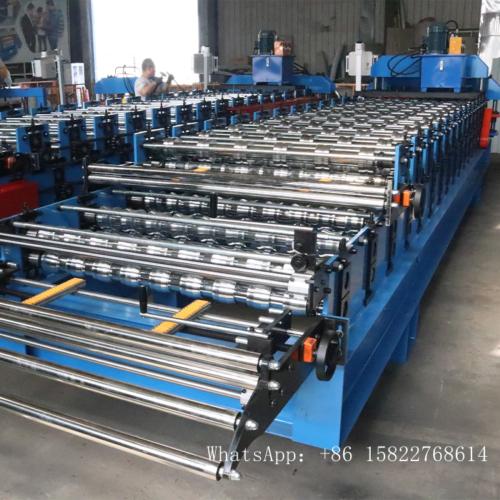

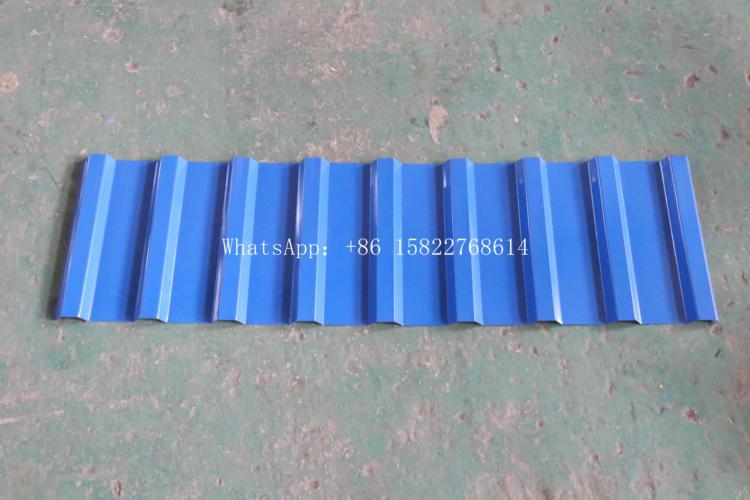

Tile & trapezoidal double layer roof making machine photos

Tile & trapezoidal double layer roof making machine details

Number of rows 15+15 Rows
Speed 15m/min
Cutting knife material Cr12Mov
Roller diameter Φ70mm
Dimensiones About 7.5 * 1.55* 1.95 m
Weight About 8 tons
Main structure of the machine 350H beams/450H beams (according to your needs)
Transmission mode Chain drive
Chain size 1.2 inches
Side panel 16 mm
Voltage 380 V 50 Hz three-phase or according to your needs
Control system PLC control
Processing precision Within 1.0 mm
Driving mode Motor driver
Power 5.5kw+4kw
PLC language Chinese + English + According to your local language
Rolling stock Forged #45 steel with chrome plate
Length tolerance ±2 mm
Thickness 0.3-0.8 mm
Coil width 1200mm

Customization & Long-Term Support

1.We customize function, size, and appearance to match your specific production needs.

2.With 28+ years in roll forming machine manufacturing, we offer trusted quality.

3.Our expert R&D team continuously innovates to enhance machine performance.

4.Machines exported worldwide, widely recognized for reliability and satisfaction.

5.We monitor machine performance and offer maintenance guidance.

Company & Service Overview

1.We are a professional roll forming machine manufacturer from Tianjin, China, founded in 2013, exporting worldwide.

2.We welcome OEM. Our engineers develop equipment based on your drawings and requirements with top-tier components.

3.We are a direct manufacturer with 28 years of experience in roll forming machinery.

Technical Support & Warranty

1.We offer onsite or remote training to ensure your operators can safely and efficiently run the machine from day one.

2.Our team is available 24/7 via phone, WhatsApp, or video to resolve issues promptly.

3.We guide you remotely to locate and fix problems—minimizing downtime and cost.

4.Full 2-year warranty with free replacement of defective parts (excluding man-made damage).
