Model：HX-916-1000 trapezoidal sheet
Delivery time: 20-30 workdays
Payment: 30% deposit upon order confirmation, 70% balance before shipment.
Warranty Period：2 years
Working voltage: 380v 50hz 3phase（as your need）
WhatsApp: +86 15822768614
E-mail: alan@hx-machinery.com
1000 trapezoidal metal roof rolling machines
The 1000 trapezoidal metal roof rolling machine is designed to produce high-precision trapezoidal roofing sheets with an effective width of 1000 mm. Built with a robust steel frame, hardened rollers, and a fully automated PLC control system, it ensures stable performance, excellent forming accuracy, and smooth surface finishes. Ideal for residential, commercial, and industrial roofing applications.

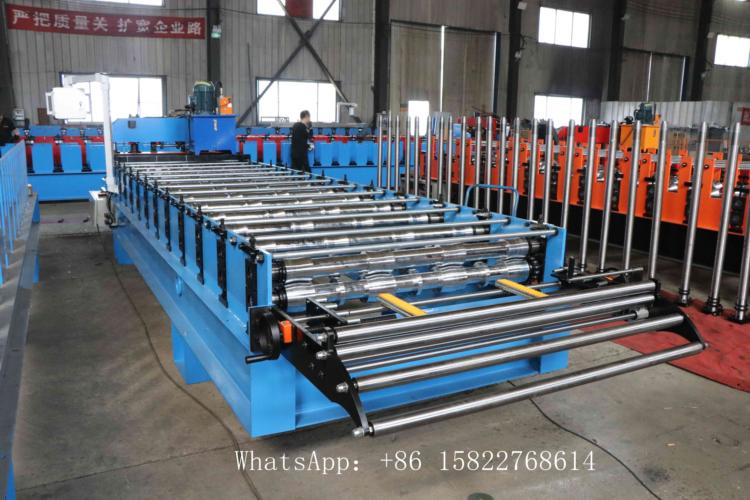

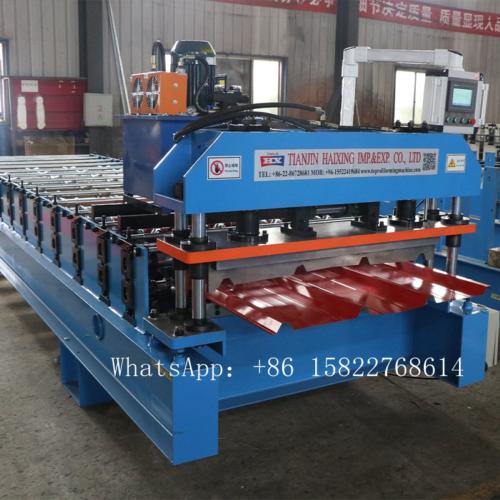

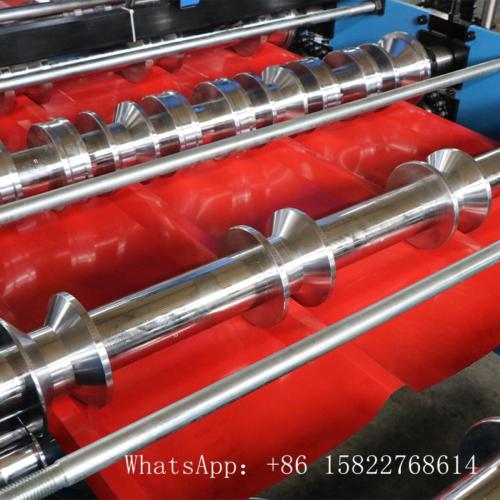

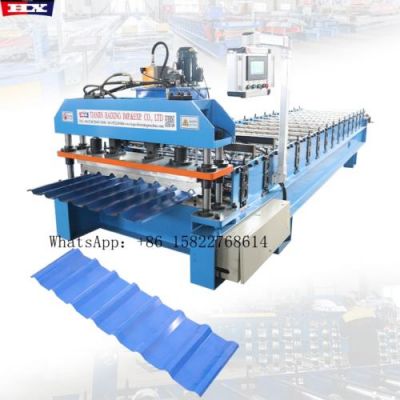

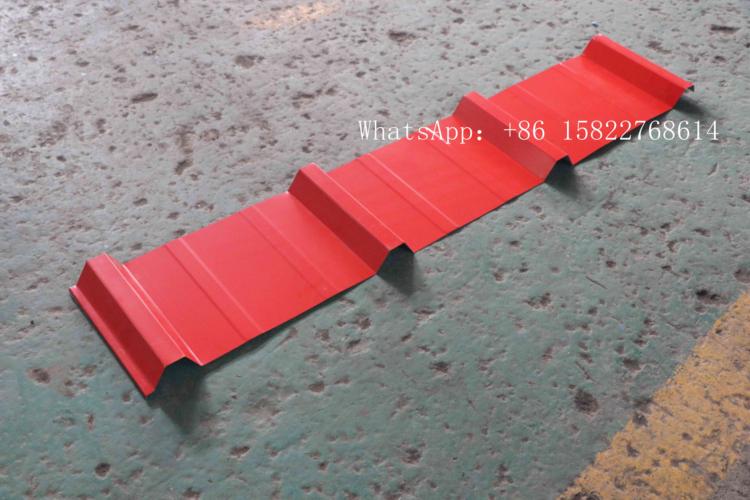

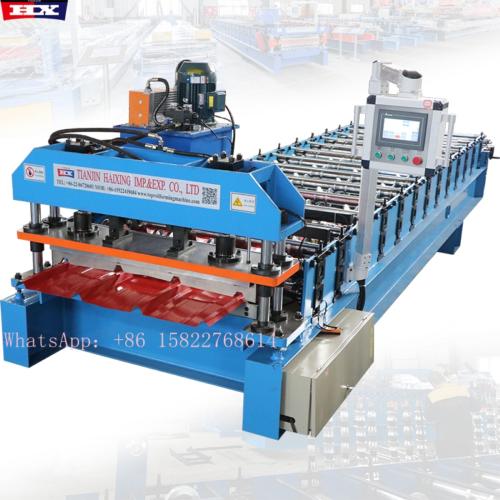

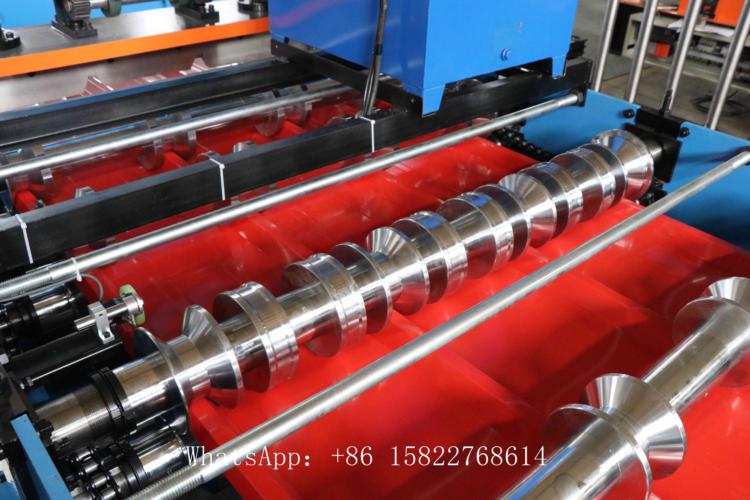

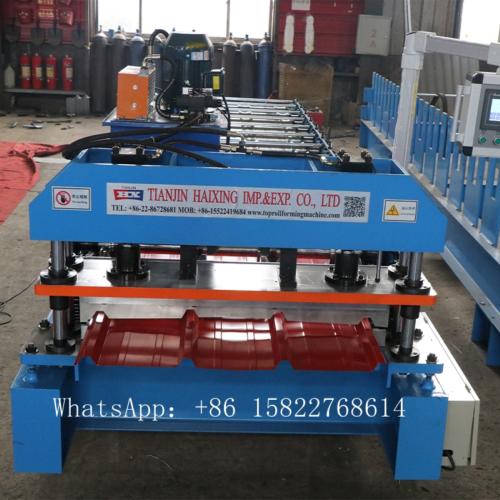

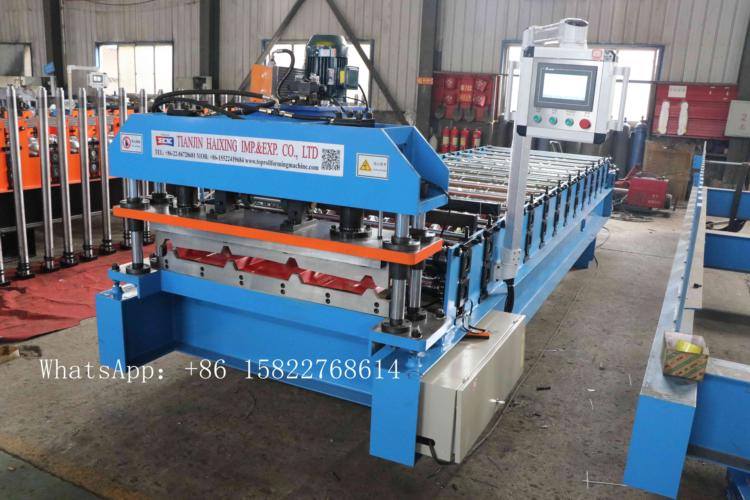

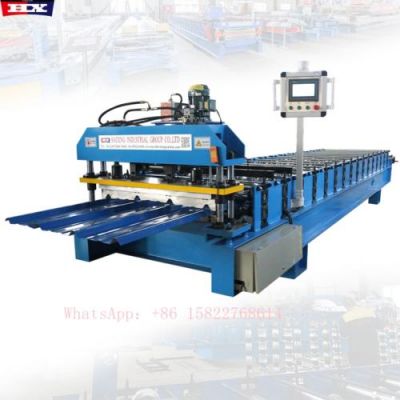

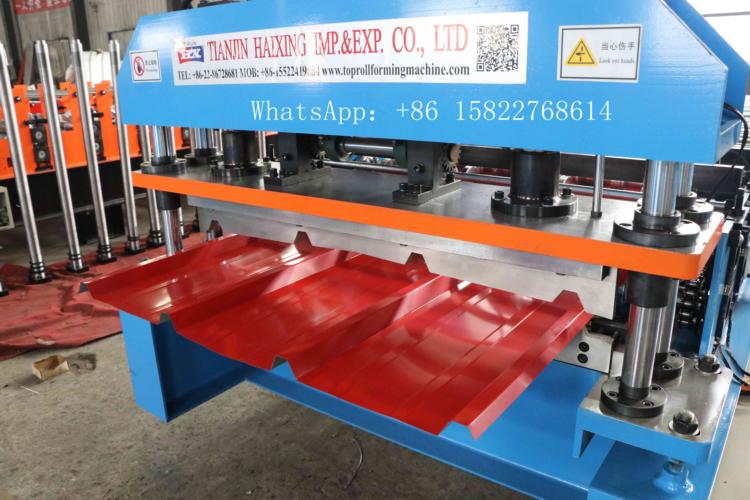

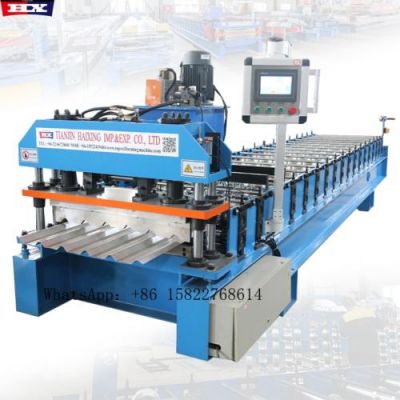

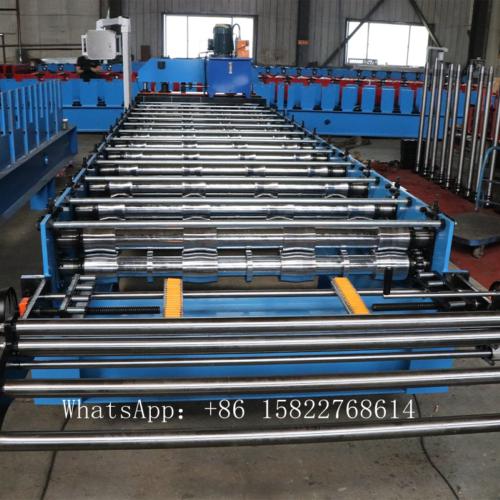

1000 trapezoidal metal roof rolling machines photos
1000 trapezoidal metal roof rolling machines details
| Number of rows | 11 Rows |
| Speed | 15m/min |
| Cutting knife material | Cr12Mov |
| Roller diameter | Φ70mm |
| Dimensiones | About 5 * 1.4 * 1.6 m |
| Weight | About 4.2 tons |
| Main structure of the machine | 350H beams/450H beams (according to your needs) |
| Transmission mode | Chain drive |
| Chain size | 1.2 inches |
| Side panel | 16 mm |
| Voltage | 380 V 50 Hz three-phase or according to your needs |
| Control system | PLC control |
| Processing precision | Within 1.0 mm |
| Driving mode | Motor driver |
| Power | 5.5kw+4kw |
| PLC language | Chinese + English + According to your local language |
| Rolling stock | Forged #45 steel with chrome plate |
| Length tolerance | ±2 mm |
| Thickness | 0.3-0.8 mm |
| Coil width | 1200/1220mm |
Performance & Quality Advantages
1.Built with advanced technology and premium components, ensuring efficient, consistent operation.
2.Forming accuracy within ±2mm for consistent quality and a professional finish.
3.Made with high-strength alloy steel and wear-resistant materials for long service life.
4.Energy-saving motors and frequency control reduce electricity costs.
5.Environmentally friendly paints and materials support green production.
Company & Service Overview
1.We are a professional roll forming machine manufacturer from Tianjin, China, founded in 2013, exporting worldwide.
2.We welcome OEM. Our engineers develop equipment based on your drawings and requirements with top-tier components.
3.We are a direct manufacturer with 28 years of experience in roll forming machinery.
Technical Support & Warranty
1.We offer onsite or remote training to ensure your operators can safely and efficiently run the machine from day one.
2.Our team is available 24/7 via phone, WhatsApp, or video to resolve issues promptly.
3.We guide you remotely to locate and fix problems—minimizing downtime and cost.
4.Full 2-year warranty with free replacement of defective parts (excluding man-made damage).
