925 glazed tile making machine
925 glazed tile making machine 925 glazed tile making machine 925 glazed tile making machine 925 glazed tile making machine 925 glazed tile making machine

925 glazed tile making machine

Product Attributes :

Model:HX-926-tile 925

Delivery time: 30-35 workdays

Payment: 30% deposit upon order confirmation, 70% balance before shipment.

Warranty Period:2 years

Working voltage: 380v 50hz 3phase(as your need)

WhatsApp: +86 15822768614

E-mail: alan@hx-machinery.com

Product Description

925 glazed tile making machine

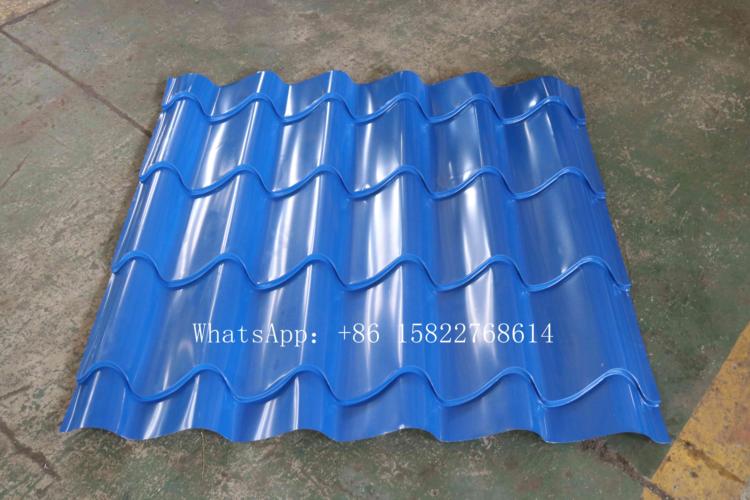

The 925 glazed tile making machine is engineered to produce elegant glazed metal roof tiles with an effective width of 925 mm. Constructed with a sturdy steel frame, precision rollers, and an automated PLC control system, it delivers accurate forming, smooth surface finish, and reliable long-term operation. Perfect for decorative roofing in residential and commercial buildings.

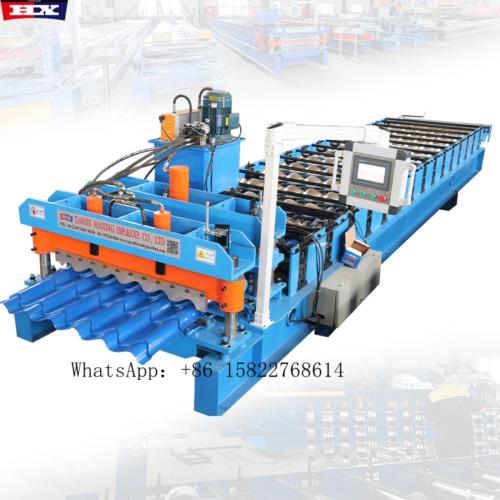

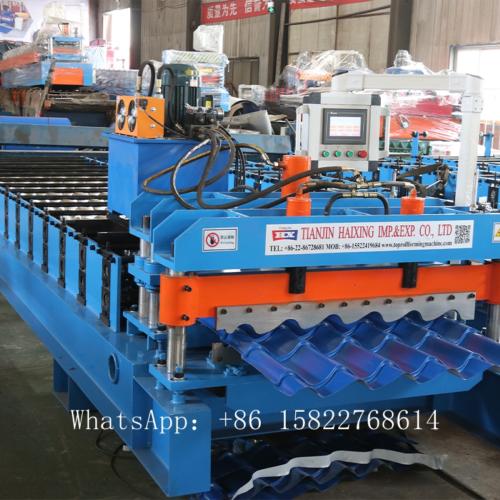

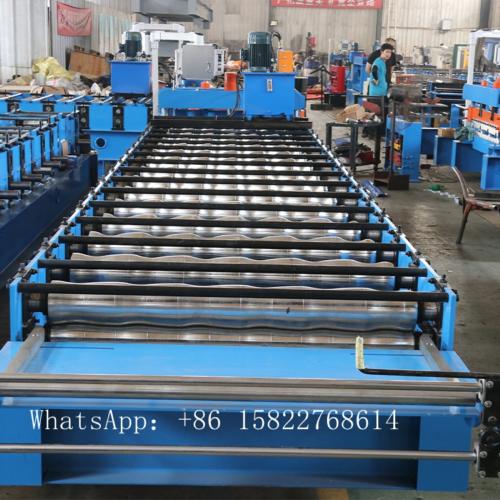

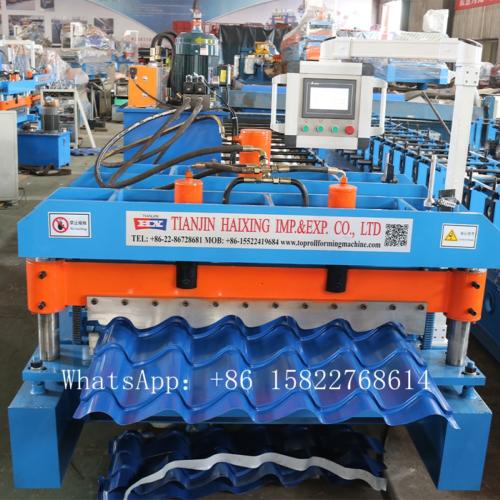

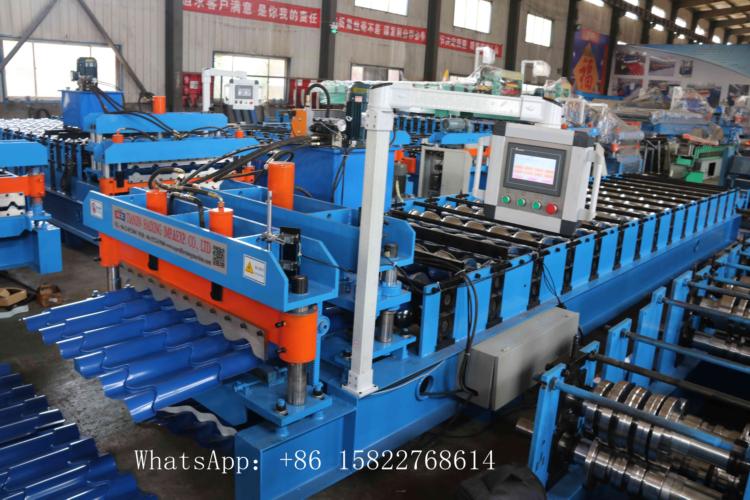

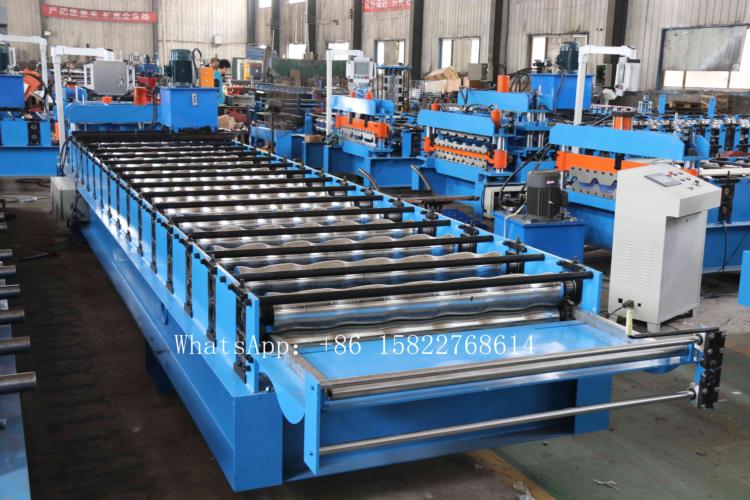

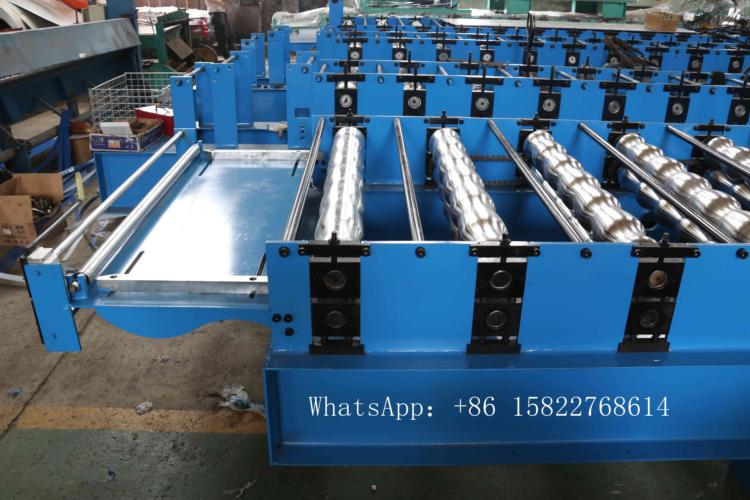

925 glazed tile making machine photos

925 glazed tile making machine details

Number of rows 15 Rows
Speed 3m/min
Cutting knife material Cr12Mov

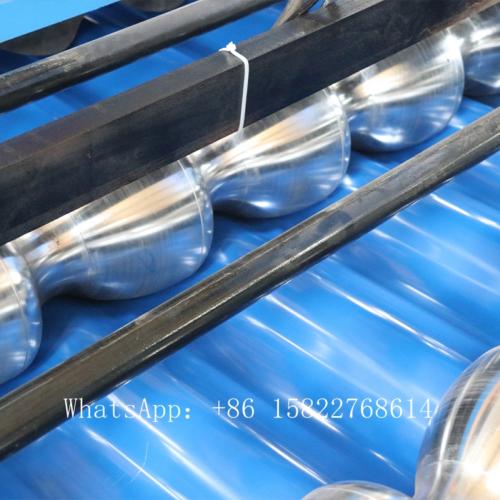

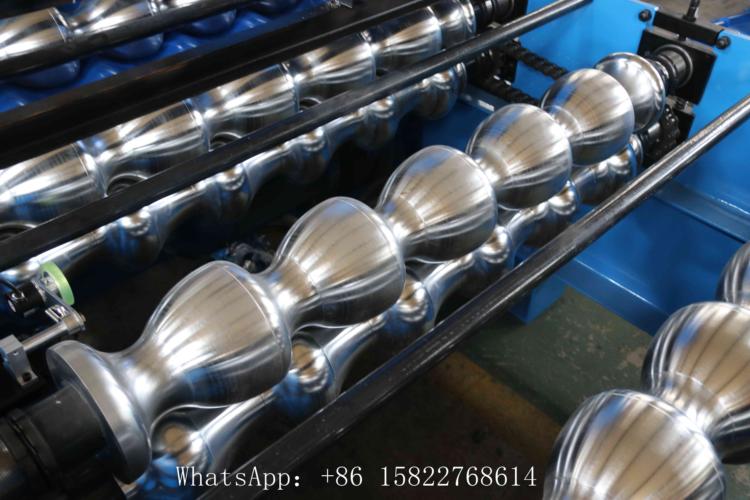

Roller diameter Φ70mm
Dimensiones About 7* 1.45 * 1.65 m
Weight About 5.8 tons
Main structure of the machine 350H beams/450H beams (according to your needs)
Transmission mode Chain drive
Chain size 1.2 inches
Side panel 16 mm
Voltage 380 V 50 Hz three-phase or according to your needs
Control system PLC control
Processing precision Within 1.0 mm
Driving mode Motor driver
Power 5.5kw+4kw
PLC language Chinese + English + According to your local language
Rolling stock Forged #45 steel with chrome plate
Length tolerance ±2 mm
Thickness 0.3-0.8 mm
Coil width 1200mm

Operation & Service Highlights

1.Easy to use—even first-time operators can learn quickly.

2.PLC-based automation makes operation smarter and more convenient.

3.Optimized structure keeps noise levels low for a better work environment.

4.Includes installation, commissioning, training, and full technical support.

5.24/7 service team resolves issues promptly to avoid delays.

Pre-Sales & Customization

1.We offer customized machine solutions and welcome on-site visits, with invitation letters if needed.

2.We offer various terms like FOB, CIF, CFR, EXW, DDP, and express courier services.

3.We accept multiple currencies and methods including T/T, L/C, PayPal, Credit Card, and more.

4.Only one trained operator is needed thanks to our intelligent PLC control system.

Long-Term Maintenance & Monitoring

1.We regularly check in to monitor performance and offer free maintenance advice.

2.We offer lifetime support even after the warranty ends to keep your machine running smoothly.

3.Each client has a dedicated service file for customized maintenance and upgrade advice.

4.We offer remote or onsite assessments to help improve operational efficiency.
