Model：HX-928-corrugated sheet 836
Delivery time: 30-35 workdays
Payment: 30% deposit upon order confirmation, 70% balance before shipment.
Warranty Period：2 years
Working voltage: 380v 50hz 3phase（as your need）
WhatsApp: +86 15822768614
E-mail: alan@hx-machinery.com
836 corrugated sheet making machine

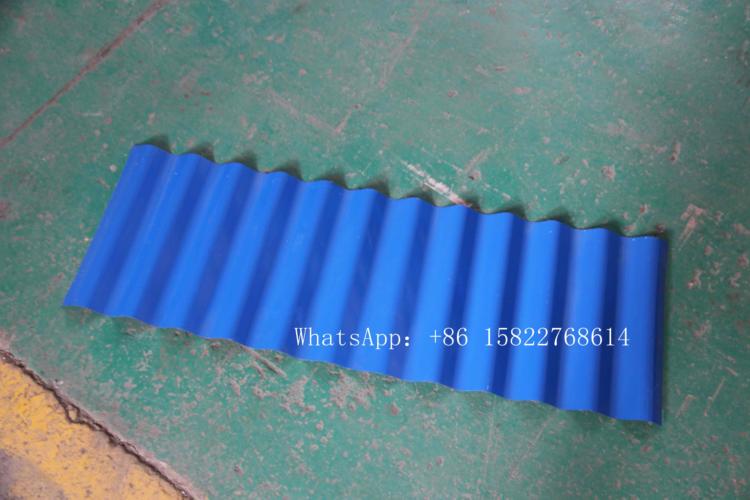

The 836 corrugated sheet making machine is designed to manufacture high-quality corrugated metal sheets with an effective width of 836 mm. Featuring a strong steel frame, hardened forming rollers, and a PLC control system, it ensures accurate profile formation, smooth surface finish, and stable operation. Ideal for roofing and siding applications in residential, commercial, and industrial projects.

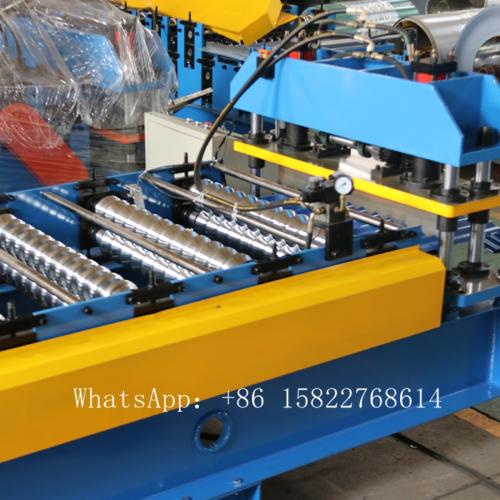

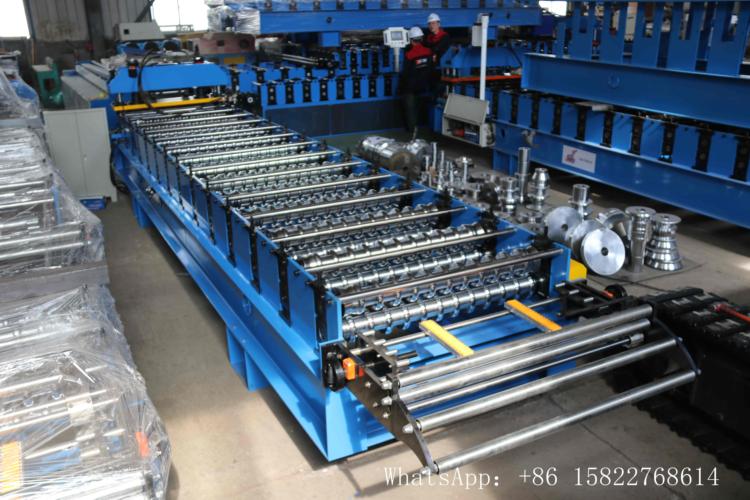

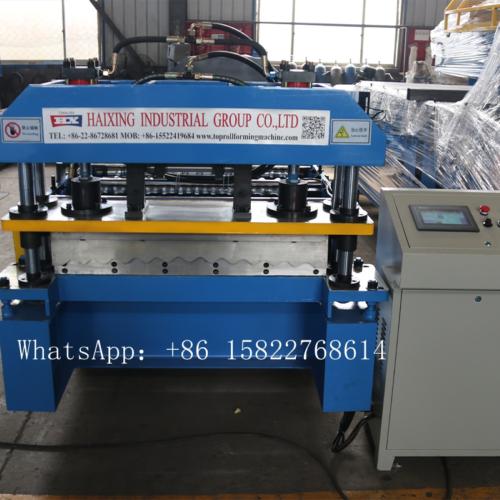

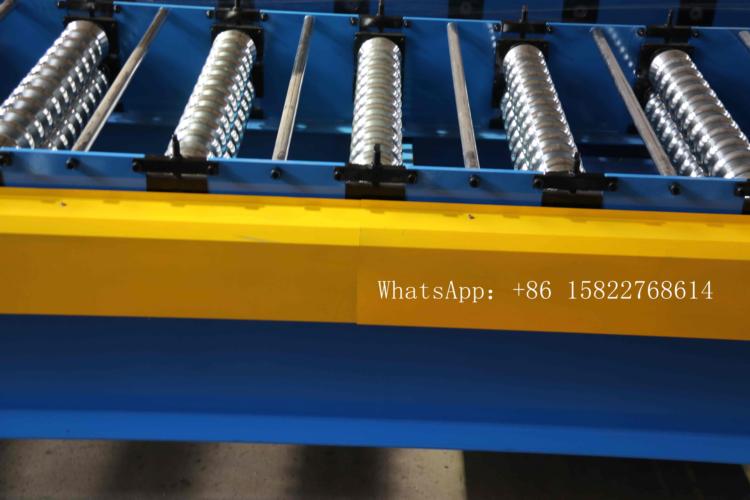

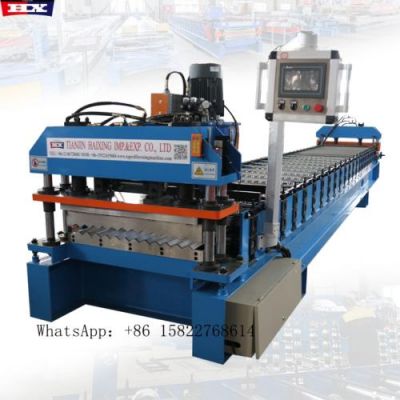

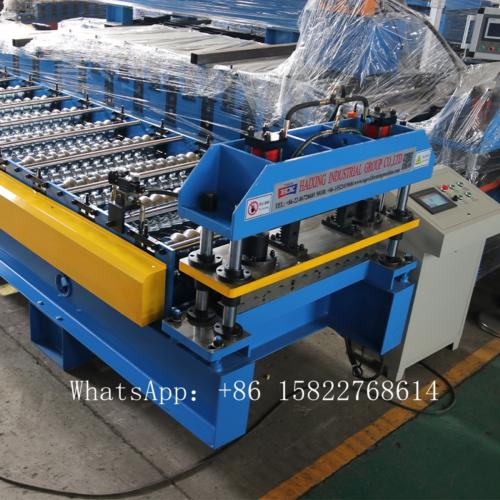

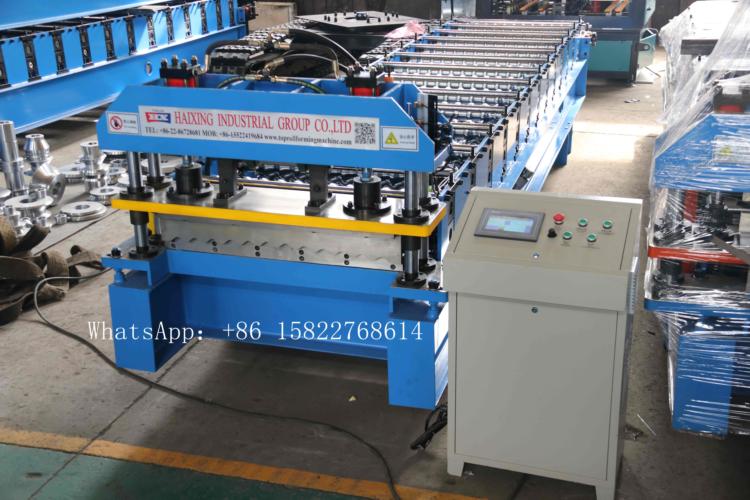

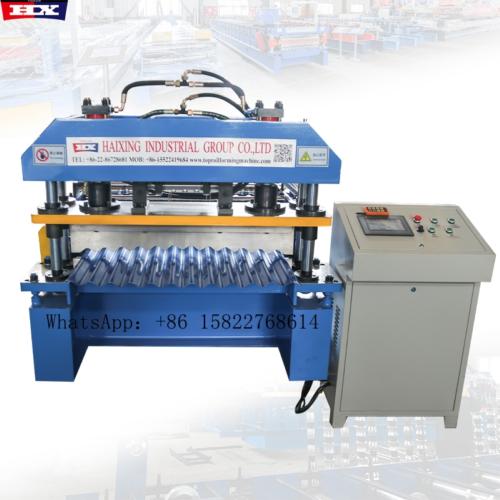

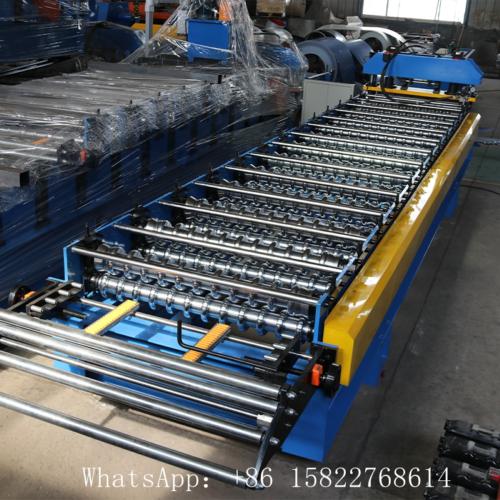

836 corrugated sheet making machine photos

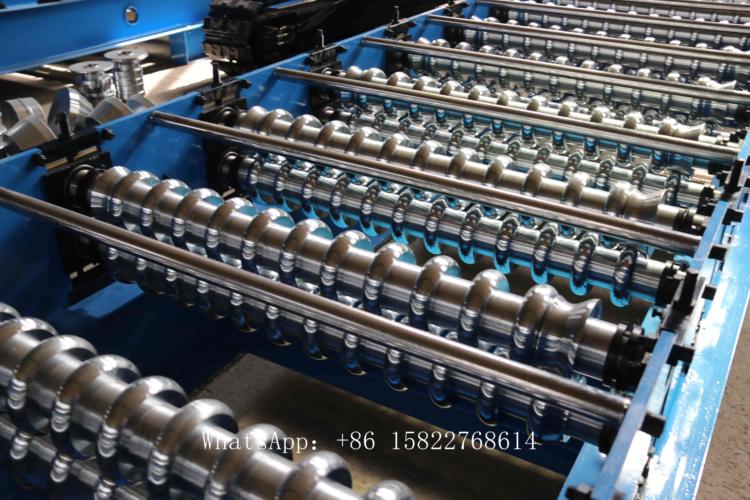

836 corrugated sheet making machine details
| Number of rows | 13 Rows |
| Speed | 15 m/min |
| Cutting knife material | Cr12Mov |
| Roller diameter | Φ70mm |
| Dimensiones | About 6* 1.4 * 1.6 m |
| Weight | About 4.7 tons |
| Main structure of the machine | 350H beams/450H beams (according to your needs) |
| Transmission mode | Chain drive |
| Chain size | 1.2 inches |
| Side panel | 16 mm |
| Voltage | 380 V 50 Hz three-phase or according to your needs |
| Control system | PLC control |
| Processing precision | Within 1.0 mm |
| Driving mode | Motor driver |
| Power | 5.5kw+4kw |
| PLC language | Chinese + English + According to your local language |
| Rolling stock | Forged #45 steel with chrome plate |
| Length tolerance | ±2 mm |
| Thickness | 0.3-0.8 mm |
| Coil width | 1000mm |
Customization & Long-Term Support
1.We customize function, size, and appearance to match your specific production needs.
2.With 28+ years in roll forming machine manufacturing, we offer trusted quality.
3.Our expert R&D team continuously innovates to enhance machine performance.
4.Machines exported worldwide, widely recognized for reliability and satisfaction.
5.We monitor machine performance and offer maintenance guidance.
Pre-Sales & Customization
1.We offer customized machine solutions and welcome on-site visits, with invitation letters if needed.
2.We offer various terms like FOB, CIF, CFR, EXW, DDP, and express courier services.
3.We accept multiple currencies and methods including T/T, L/C, PayPal, Credit Card, and more.
4.Only one trained operator is needed thanks to our intelligent PLC control system.
Customer Experience & Value-Added Benefits
1.We conduct regular surveys to improve our service based on your feedback.
2.Long-term partners enjoy discounts, faster delivery, and priority support.
3.A personal service manager ensures smooth and efficient support.
4.We offer tailored support like factory layout advice and upgrade planning.
