875 corrugated iron rolling machine
875 corrugated iron rolling machine 875 corrugated iron rolling machine 875 corrugated iron rolling machine 875 corrugated iron rolling machine 875 corrugated iron rolling machine

875 corrugated iron rolling machine

Product Attributes :

Model:HX-933-corrugated sheet 875

Delivery time: 30-35 workdays

Payment: 30% deposit upon order confirmation, 70% balance before shipment.

Warranty Period:2 years

Working voltage: 380v 50hz 3phase(as your need)

WhatsApp: +86 15822768614

E-mail: alan@hx-machinery.com

Product Description

875 corrugated iron rolling machine

The 875 corrugated iron rolling machine is engineered to produce corrugated roofing sheets with an effective width of 875 mm. Equipped with a reinforced steel structure, hardened rollers, and a fully automated PLC control system, it ensures accurate profile forming, smooth surface finish, and reliable long-term operation. Ideal for roofing and cladding in residential, commercial, and industrial construction.

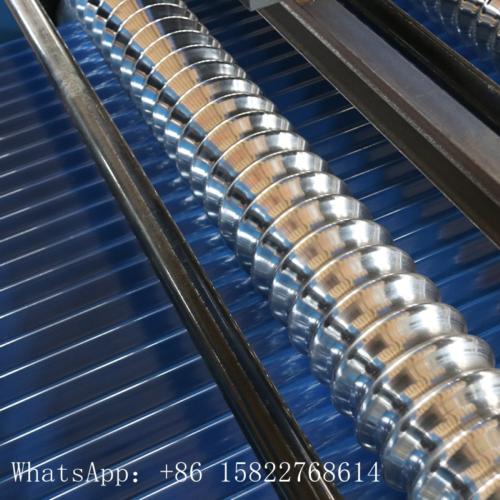

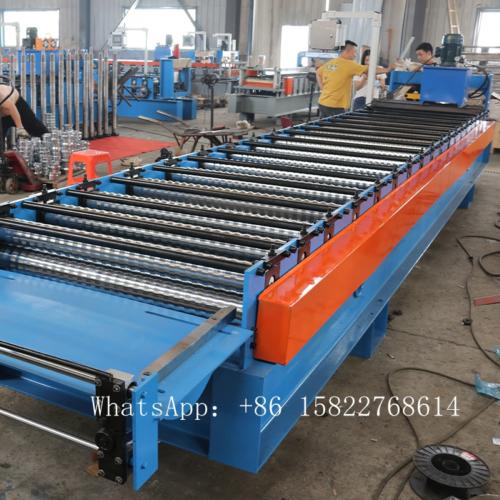

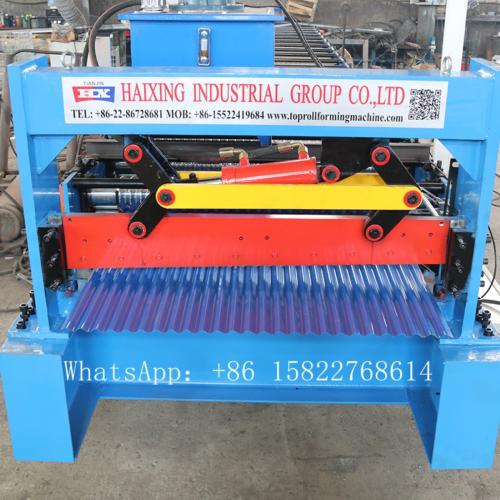

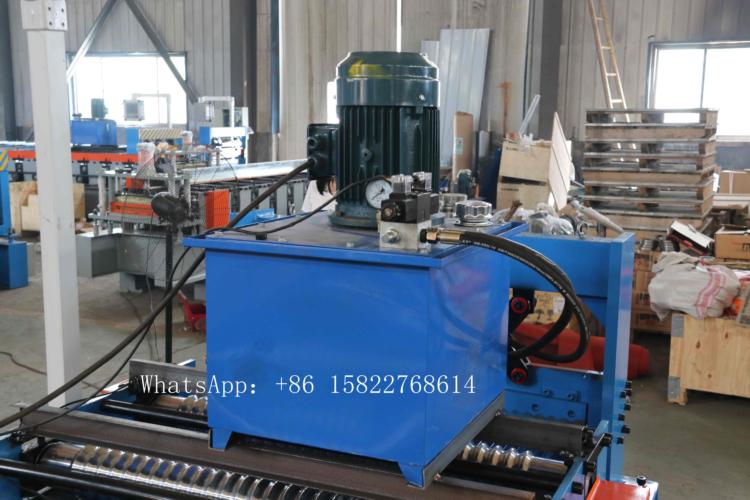

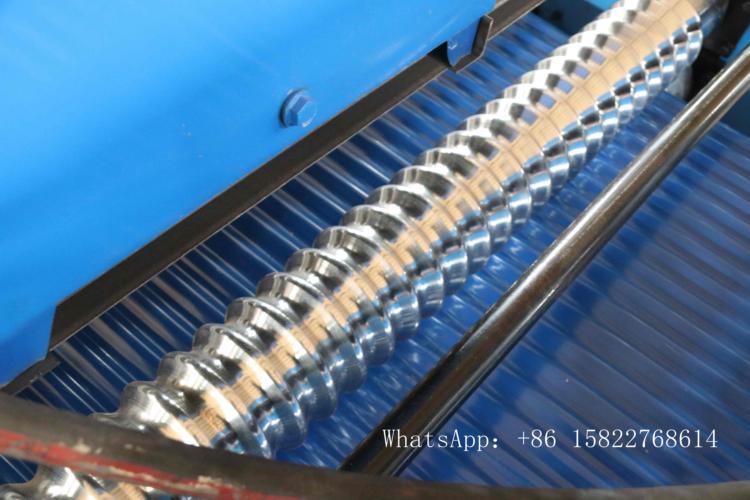

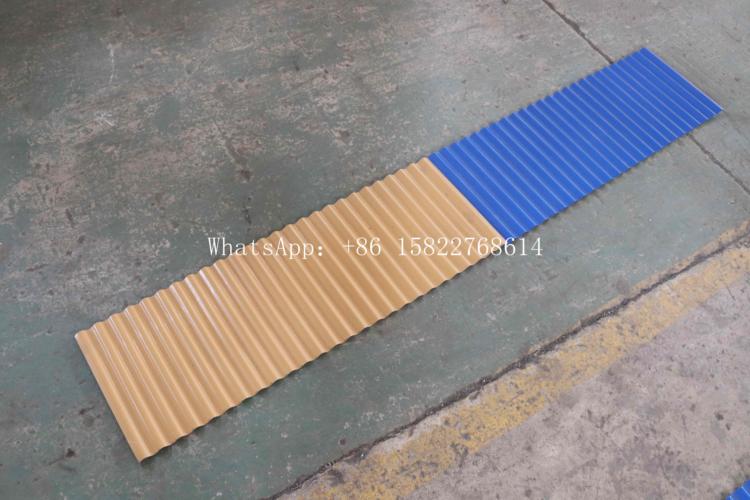

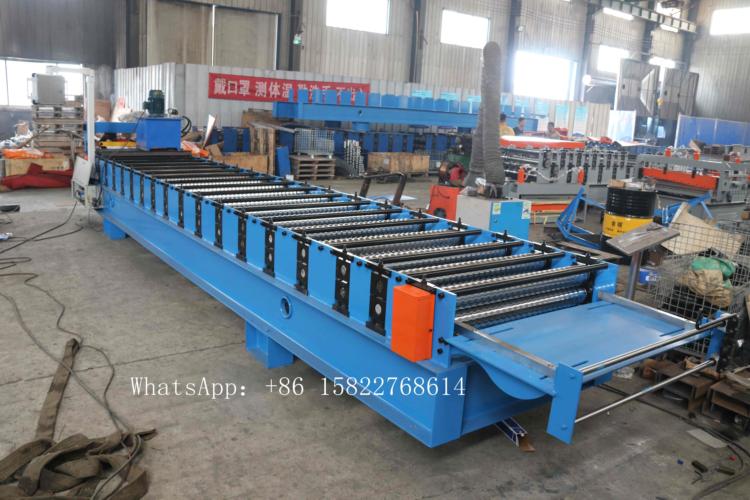

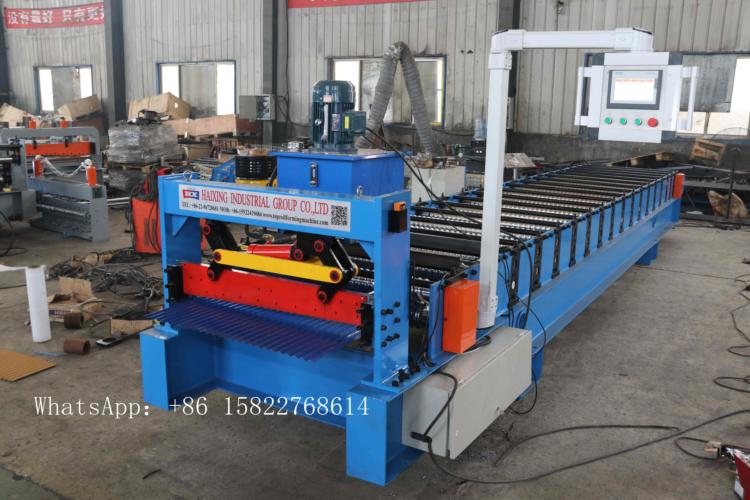

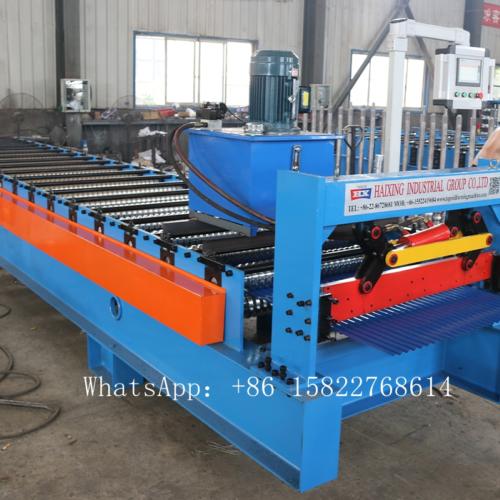

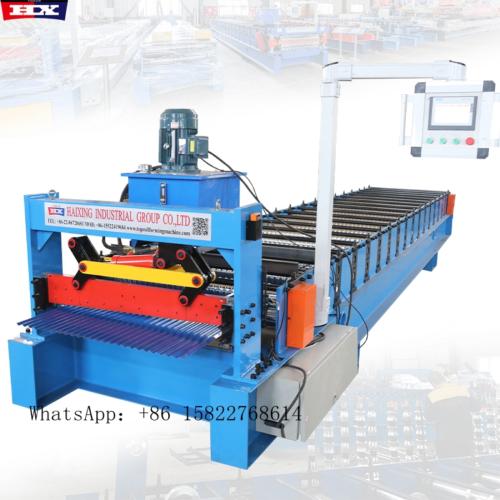

875 corrugated iron rolling machine photos

875 corrugated iron rolling machine details

Number of rows 18 Rows
Speed 15 m/min
Cutting knife material Cr12Mov
Roller diameter Φ70mm
Dimensiones About 8.2* 1.4 * 1.6 m
Weight About 7 tons
Main structure of the machine 350H beams/450H beams (according to your needs)
Transmission mode Chain drive
Chain size 1.2 inches
Side panel 16 mm
Voltage 380 V 50 Hz three-phase or according to your needs
Control system PLC control
Processing precision Within 1.0 mm
Driving mode Motor driver
Power 5.5kw+4kw
PLC language Chinese + English + According to your local language
Rolling stock Forged #45 steel with chrome plate
Length tolerance ±2 mm
Thickness 0.3-0.8 mm
Coil width 1000mm

Customization & Long-Term Support

1.We customize function, size, and appearance to match your specific production needs.

2.With 28+ years in roll forming machine manufacturing, we offer trusted quality.

3.Our expert R&D team continuously innovates to enhance machine performance.

4.Machines exported worldwide, widely recognized for reliability and satisfaction.

5.We monitor machine performance and offer maintenance guidance.

Pre-Sales & Customization

1.We offer customized machine solutions and welcome on-site visits, with invitation letters if needed.

2.We offer various terms like FOB, CIF, CFR, EXW, DDP, and express courier services.

3.We accept multiple currencies and methods including T/T, L/C, PayPal, Credit Card, and more.

4.Only one trained operator is needed thanks to our intelligent PLC control system.

Customer Experience & Value-Added Benefits

1.We conduct regular surveys to improve our service based on your feedback.

2.Long-term partners enjoy discounts, faster delivery, and priority support.

3.A personal service manager ensures smooth and efficient support.

4.We offer tailored support like factory layout advice and upgrade planning.
