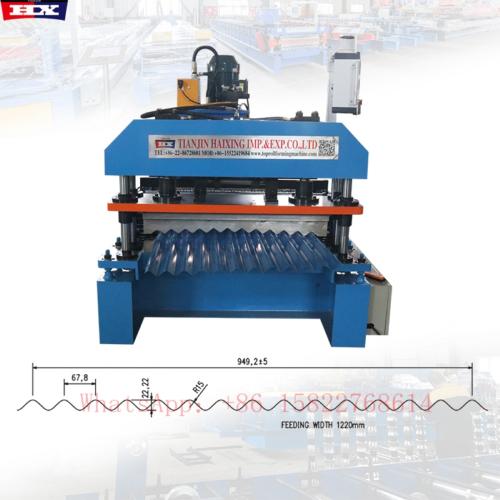

988 corrugated roof sheet roll forming machine
988 corrugated roof sheet roll forming machine 988 corrugated roof sheet roll forming machine 988 corrugated roof sheet roll forming machine 988 corrugated roof sheet roll forming machine 988 corrugated roof sheet roll forming machine

988 corrugated roof sheet roll forming machine

Product Attributes :

Model:HX-964-988 corrugated sheet

Delivery time: 30-35 workdays

Payment: 30% deposit upon order confirmation, 70% balance before shipment.

Warranty Period:2 years

Working voltage: 380v 50hz 3phase(as your need)

WhatsApp: +86 15822768614

E-mail: alan@hx-machinery.com

Product Description

988 corrugated roof sheet roll forming machine

Our 988 corrugated roof sheet roll forming machine is designed for the U.S. market, producing classic round-wave corrugated panels with a 988mm effective width. These sheets are widely used in agricultural, residential, and light commercial roofing across the United States. The machine features a high-precision roller system, fully automated PLC control, and robust structure for long-term reliability. It ensures uniform wave shape and tight overlap, making it easy for U.S. contractors to install. We offer fast delivery, spare parts, and lifetime technical support across the country.

988 corrugated roof sheet roll forming machine photos

988 corrugated roof sheet roll forming machine details

Number of rows 13 Rows
Speed 15 m/min
Cutting knife material Cr12Mov
Roller diameter Φ70mm
Dimensiones About 6* 1.4 * 1.6 m
Weight About 4.7 tons
Main structure of the machine 350H beams/450H beams (according to your needs)
Transmission mode Chain drive
Chain size 1.2 inches
Side panel 16 mm
Voltage 380 V 50 Hz three-phase or according to your needs
Control system PLC control
Processing precision Within 1.0 mm
Driving mode Motor driver
Power 5.5kw+4kw
PLC language Chinese + English + According to your local language
Rolling stock Forged #45 steel with chrome plate
Length tolerance ±2 mm
Thickness 0.3-0.8 mm
Coil width 1000mm

Efficiency & ROI

1.Automatic feeding, cutting, and stacking reduce labor and boost efficiency.

2.Excellent performance at a fair price with fast ROI.

3.We keep wear parts in stock to minimize downtime.

4.Video and online diagnostics for quick problem-solving.

5.Streamlined production ensures timely delivery for your project schedule.

Extra Support & Assistance

1.We can assist you in sourcing raw materials like steel coils for your machine.

2.We update you with shipping dates and help confirm vessel arrangements.

3.We provide machines, matching molds, layout plans, and technical guidance.

4.We serve clients worldwide across various industries, earning strong trust and reputation.

Long-Term Maintenance & Monitoring

1.We regularly check in to monitor performance and offer free maintenance advice.

2.We offer lifetime support even after the warranty ends to keep your machine running smoothly.

3.Each client has a dedicated service file for customized maintenance and upgrade advice.

4.We offer remote or onsite assessments to help improve operational efficiency.
