Model:HX-960-925 tile sheet
Delivery time: 30-35 workdays
Payment: 30% deposit upon order confirmation, 70% balance before shipment.
Warranty Period:2 years
Working voltage: 380v 50hz 3phase(as your need)
WhatsApp: +86 15822768614
E-mail: alan@hx-machinery.com
925 glazed tile roll forming machine
Our 925 glazed tile roll forming machine is ideal for U.S. customers seeking elegant, high-quality metal roofing solutions. It produces 925mm effective width glazed tiles with crisp profiles and smooth finishes, perfect for residential homes, villas, and commercial projects. The machine features a user-friendly PLC system, automatic cutting, and a strong frame for long-term durability. Designed to meet American standards, we provide fast shipping, parts availability, and technical support across the U.S.

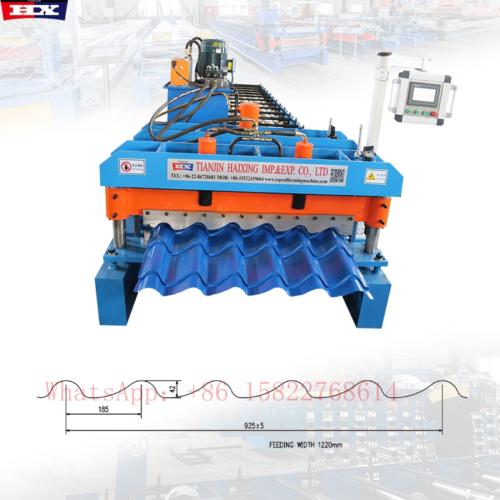

925 glazed tile roll forming machine photos
925 glazed tile roll forming machine details
Number of rows | 13 Rows |
Speed | 15 m/min |
Cutting knife material | Cr12Mov |
Roller diameter | Φ70mm |
Dimensiones | About 6* 1.4 * 1.6 m |
Weight | About 4.7 tons |
Main structure of the machine | 350H beams/450H beams (according to your needs) |
Transmission mode | Chain drive |
Chain size | 1.2 inches |
Side panel | 16 mm |
Voltage | 380 V 50 Hz three-phase or according to your needs |
Control system | PLC control |
Processing precision | Within 1.0 mm |
Driving mode | Motor driver |
Power | 5.5kw+4kw |
PLC language | Chinese + English + According to your local language |
Rolling stock | Forged #45 steel with chrome plate |
Length tolerance | ±2 mm |
Thickness | 0.3-0.8 mm |
Coil width | 1000mm |
Efficiency & ROI
1.Automatic feeding, cutting, and stacking reduce labor and boost efficiency.
2.Excellent performance at a fair price with fast ROI.
3.We keep wear parts in stock to minimize downtime.
4.Video and online diagnostics for quick problem-solving.
5.Streamlined production ensures timely delivery for your project schedule.
Extra Support & Assistance
1.We can assist you in sourcing raw materials like steel coils for your machine.
2.We update you with shipping dates and help confirm vessel arrangements.
3.We provide machines, matching molds, layout plans, and technical guidance.
4.We serve clients worldwide across various industries, earning strong trust and reputation.
Long-Term Maintenance & Monitoring
1.We regularly check in to monitor performance and offer free maintenance advice.
2.We offer lifetime support even after the warranty ends to keep your machine running smoothly.
3.Each client has a dedicated service file for customized maintenance and upgrade advice.
4.We offer remote or onsite assessments to help improve operational efficiency.
